01-152.025

Obsolete

EAO

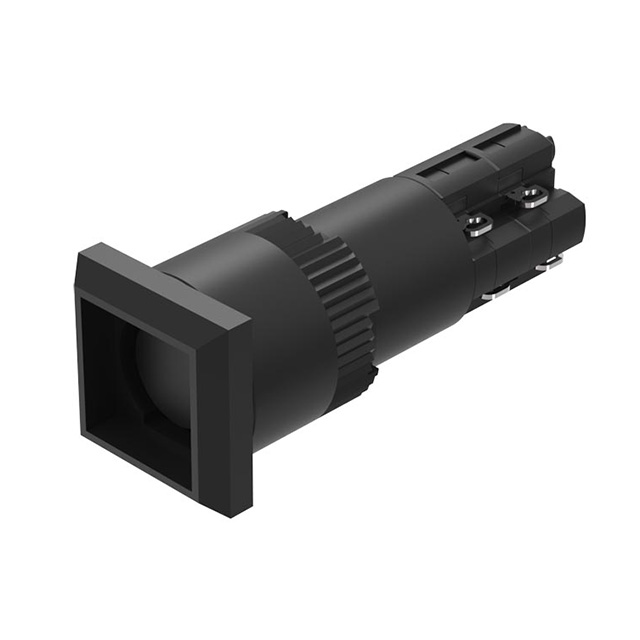

SWITCH PB 4PST-2NO/2NC 5A 250V

Search across all available documentation for this part.

Obsolete

EAO

SWITCH PB 4PST-2NO/2NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	01-152.025

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

Part	Current Rating (Amps)	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Actuator Type	Voltage Rating - AC	Actuator Marking	Switch Function	Type	Panel Cutout Dimensions [diameter]	Termination Style	Circuit
EAO 01-152.025	5 A	2000000 Cycles	55 °C	-25 °C	Panel Mount Front	IP40	Square Button (Not Included)	250 V	No Marking	Off-Mom On-Mom	Standard	16 mm	Solder Lug	4PST-2NO/2NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
