Q-3604I00081.5M

Active

Amphenol Custom Cable

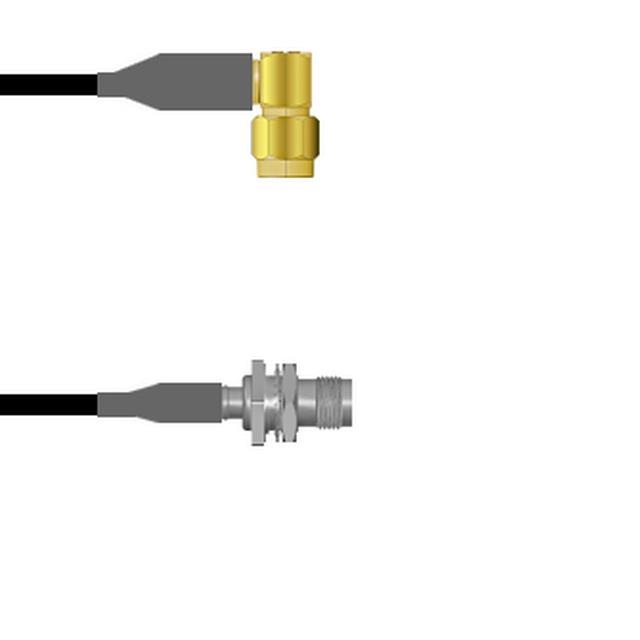

CBL ASSY SMA-TNC PLUG-JACK 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-JACK 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3604I00081.5M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Feature	1st Connector	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Connector Impedance	Cable Impedance	Style	Cable Type	Length	Length	Length	Overall Impedance	Features	2nd Connector	Color
Amphenol Custom Cable Q-3604I0008108I	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	2.7 m	9 ft	108 in	50 Ohms	Shielded	TNC Jack	Black
Amphenol Custom Cable Q-3604I00081.5M	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	1.5 m	4.9 ft	59.1 in	50 Ohms	Shielded	TNC Jack	Black
Amphenol Custom Cable Q-3604I00082.5M	Male	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Right Angle SMA Plug	Female	Panel Mount	1 GHz	50 Ohms	50 Ohms	SMA to TNC	RG-58	2.5 m	8.2 '	98.4 in	50 Ohms	Shielded	TNC Jack	Black
