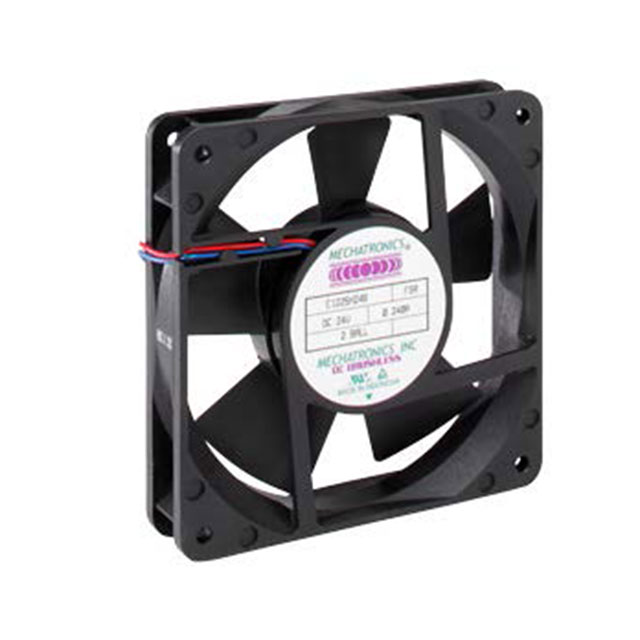

E1225S05B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 120X25MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

E1225S05B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 120X25MM 5VDC WIRE

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E1225S05B1-FSR

Air Flow	44 CFM
Air Flow	1.23 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.22 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
RPM	1400 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	22.4 Pa
Static Pressure	0.09 in H2O
Termination	3 Wire Leads
Voltage - Rated	5 V
Weight	0.436 lb
Weight	197.77 g
Width [y]	25 mm

E1225 Series

Part	Noise	Material - Blade	Approval Agency	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features	Width [y]	Static Pressure	Static Pressure	Termination	RPM	Current Rating (Amps)	Air Flow	Air Flow	Bearing Type	Fan Type
Mechatronics Bearing Group E1225L12B-FSR	32 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	Thermal Overload Protector (TOP)	25 mm	29.9 Pa	0.12 in H2O	2 Wire Leads	1800 RPM	0.142 A	55 CFM	1.54 mł/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225M05B2-FSR	36 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	5 V	120 mm	120 mm	197.77 g	0.436 lb	Locked Rotor Sensor Thermal Overload Protector (TOP)	25 mm	45 Pa	0.18 in H2O	3 Wire Leads	2200 RPM	600 mA	67 CFM	1.88 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225E12B3-FSR	44 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	Thermal Overload Protector (TOP) Thermistor	25 mm	69.7 Pa	0.28 in H2O	2 Wire Leads	3000 RPM	580 mA	93 CFM	2.6 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225E12B1-FSR-TTL	44 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	69.7 Pa	0.28 in H2O	3 Wire Leads	3000 RPM	580 mA	93 CFM	2.6 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225S05B1-FSR	28 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	5 V	120 mm	120 mm	197.77 g	0.436 lb	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	22.4 Pa	0.09 in H2O	3 Wire Leads	1400 RPM	0.22 A	44 CFM	1.23 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225S12B1-FSR	28 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	22.4 Pa	0.09 in H2O	3 Wire Leads	1400 RPM	100 mA	44 CFM	1.23 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225E12B1+6-FSR	44 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	25 mm	69.7 Pa	0.28 in H2O	4 Wire Leads	3000 RPM	580 mA	93 CFM	2.6 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225E12B-FSR	44 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	12 VDC	120 mm	120 mm	196.86 g	0.434 lb	Thermal Overload Protector (TOP)	25 mm	69.7 Pa	0.28 in H2O	2 Wire Leads	3000 RPM	580 mA	93 CFM	2.6 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225S24B-FSR	28 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	24 VDC	120 mm	120 mm	196.86 g	0.434 lb	Thermal Overload Protector (TOP)	25 mm	22.4 Pa	0.09 in H2O	2 Wire Leads	1400 RPM	85 mA	44 CFM	1.23 m³/min	Ball	Tubeaxial
Mechatronics Bearing Group E1225E24B-FSR	44 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	24 VDC	120 mm	120 mm	196.86 g	0.434 lb	Thermal Overload Protector (TOP)	25 mm	69.7 Pa	0.28 in H2O	2 Wire Leads	3000 RPM	0.34 A	93 CFM	2.6 m³/min	Ball	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.92
		10	$ 16.15
		25	$ 15.19
		50	$ 14.61
		100	$ 13.46
		250	$ 12.59
		500	$ 12.40

Description

General part information

E1225 Series

Fan Tubeaxial 5VDC Square - 120mm L x 120mm H Ball 44.0 CFM (1.23mł/min) 3 Wire Leads
