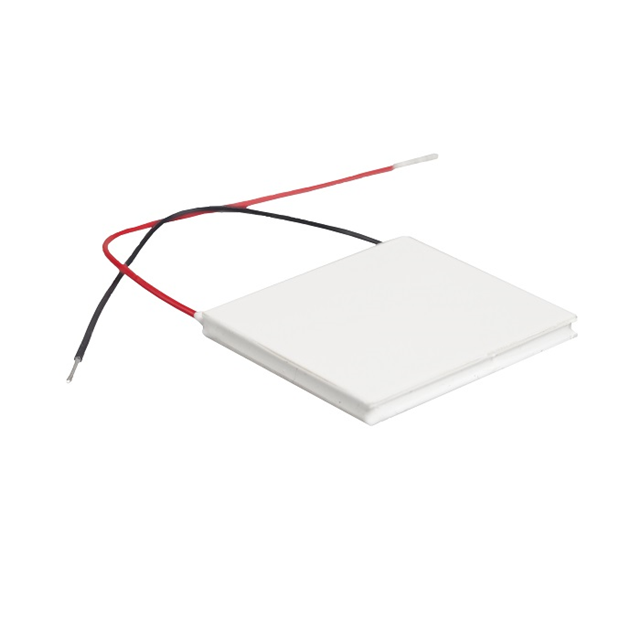

APHC-07104-S

Active

European Thermodynamics Ltd

TE HIGH TEMP,CYC,71,4A,SIL

Search across all available documentation for this part.

Active

European Thermodynamics Ltd

TE HIGH TEMP,CYC,71,4A,SIL

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Delta Tmax @ Th	Height [z]	Resistance	Current - Max [Max]	Voltage - Max [Max]	Size / Dimension	Voltage - Max
European Thermodynamics Ltd APHC-07104-S	23.5 mm	28 mm	65 °C	3.33 mm	1.8 Ohms	3.7 A	8.2 V
European Thermodynamics Ltd APHC-287-10-13-E	40 mm	40 mm	72 °C	3.6 mm	7.7 Ohms	3.6 A
European Thermodynamics Ltd APHC-12704-S	30 mm	34 mm	66 °C	3.63 mm	3.2 Ohms	3.7 A	14.7 V
European Thermodynamics Ltd APHC-12708-S	40 mm	44 mm	66 °C	3.5 mm	1.6 Ohms	7.4 A	14.7 V	Rectangular
European Thermodynamics Ltd APHC-070-20-E	36 mm	54 mm	58 °C	3.1 mm		19 A		Rectangular	7.7 V
European Thermodynamics Ltd APHC-161-12-13-S	40 mm	40 mm	68 °C	3.6 mm	3 Ohms	5.13 A	20.1 V
European Thermodynamics Ltd APHC-161-12-15-S	40 mm	40 mm	69 °C	3.6 mm	3.4 Ohms	4.53 A	20.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 3.7 A

Technical documentation and resources

No documents available
