896-027-558-108
ActiveEDAC Inc.

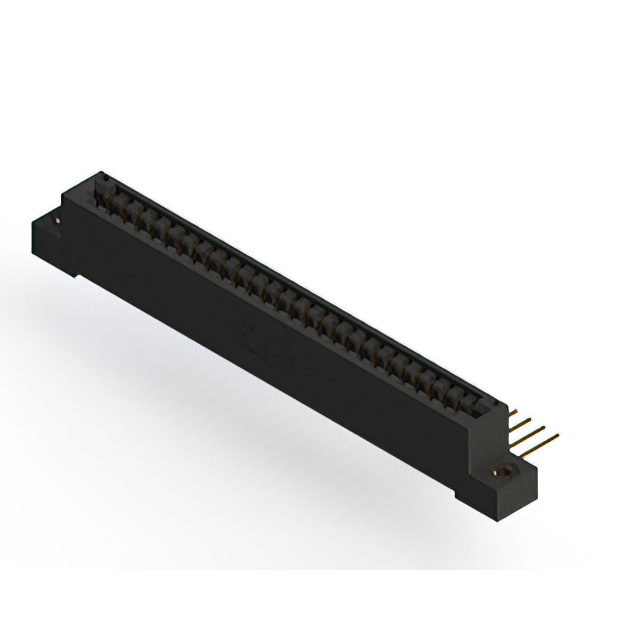

CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-027-558-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-027-558-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
896-027 Series
| Part | Number of Positions | Mounting Type | Contact Material | Card Type | Read Out | Contact Type | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Color | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | 3.25 mm | 0.128 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | |||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | ||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | 3.25 mm | 0.128 in | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | Side Mount Opening Unthreaded | ||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | 27 | Through Hole | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | ||
EDAC Inc. | 27 | Through Hole | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 27 | Through Hole Right Angle | Copper Alloy | Non Specified - Single Edge | Single | Cantilever | 0.125 in | 3.18 mm | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Polyphenylene Sulfide (PPS) | 27 | Black | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Gold | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 71.70 | |
Description
General part information
896-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
