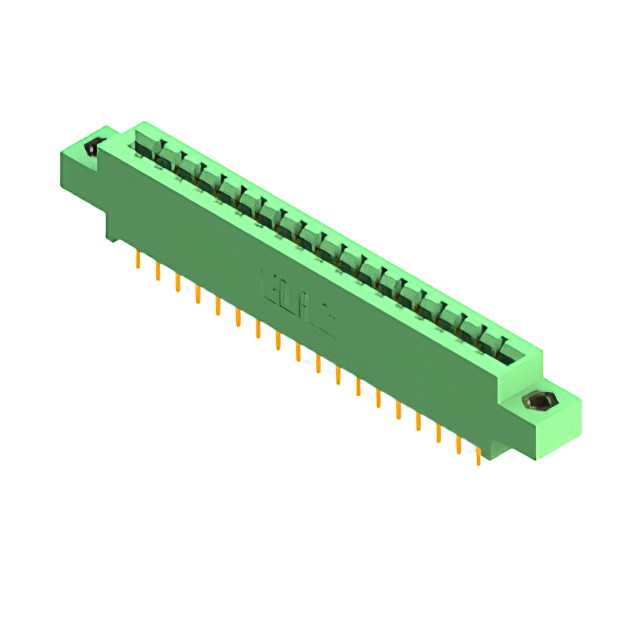

837-036-523-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-036-523-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-036-523-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-036 Series
...
| Part | Termination | Number of Rows | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Material - Insulation | Gender | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole Right Angle | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Wire Wrap | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Solder Eyelet(s) | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 1 | Diallyl Phthalate (DAP) | Female | Gold | |||
EDAC Inc. | Wire Wrap | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Wire Wrap | 2 | Dual | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Through Hole | 18 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Solder | 2 | Dual | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Board Edge Straddle Mount | 18 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Female | Gold | Card Extender | |||
EDAC Inc. | Solder | 2 | Dual | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Through Hole Right Angle | 18 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Diallyl Phthalate (DAP) | Female | Gold | |||
EDAC Inc. | Solder | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Wire Wrap | 1 | Single | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Single Edge | 0.156 in | 3.96 mm | Through Hole | 36 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | Diallyl Phthalate (DAP) | Female | Gold | |
EDAC Inc. | Solder | 2 | Dual | 125 °C | -40 °C | Copper Alloy | 36 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Through Hole | 18 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 2 | Diallyl Phthalate (DAP) | Female | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 77.14 | |
Description
General part information
837-036 Series
36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
