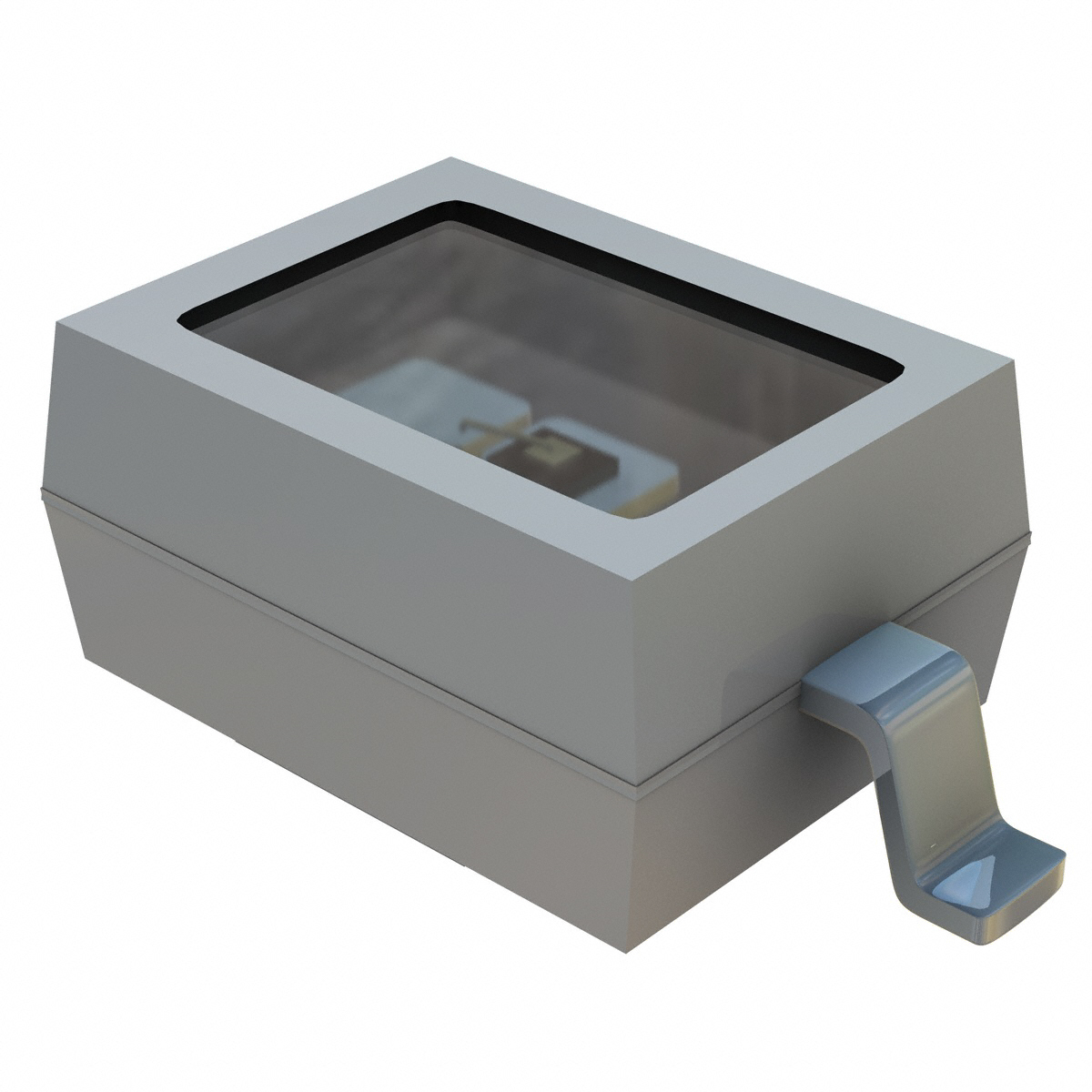

AA3022SGC-4.5SF

Active

Kingbright

LED GREEN CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED GREEN CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Lens Style	Package / Case	Height (Max) [Max] [z]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Viewing Angle [custom]	Configuration	Lens Size [y]	Lens Size [x]	Supplier Device Package	Wavelength - Dominant	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Mounting Type	Lens Color	Color
Kingbright AA3022SGC-4.5SF	565 nm	Rectangle with Flat Top	2-SMD Gull Wing	1.65 mm	20 mcd	2.2 V	90 °	Standard	1.7 mm	2.5 mm	SMD	568 nm	20 mA	2.2 mm	3 mm	Clear	Surface Mount	Colorless	Green
Kingbright AA3022SRC-4.5SF	660 nm	Rectangle with Flat Top	2-SMD Gull Wing	1.65 mm	150 mcd	1.85 V	90 °	Standard	1.7 mm	2.5 mm	SMD	640 nm	20 mA	2.2 mm	3 mm	Clear	Surface Mount	Colorless	Red
Kingbright AA3022YC-4.5SF	590 nm	Rectangle with Flat Top	2-SMD Gull Wing	1.65 mm	15 mcd	2.1 V	90 °	Standard	1.7 mm	2.5 mm	2-SMD	588 nm	20 mA	2.2 mm	3 mm	Clear	Surface Mount	Colorless	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green 568nm LED Indication - Discrete 2.2V 2-SMD, Gull Wing
