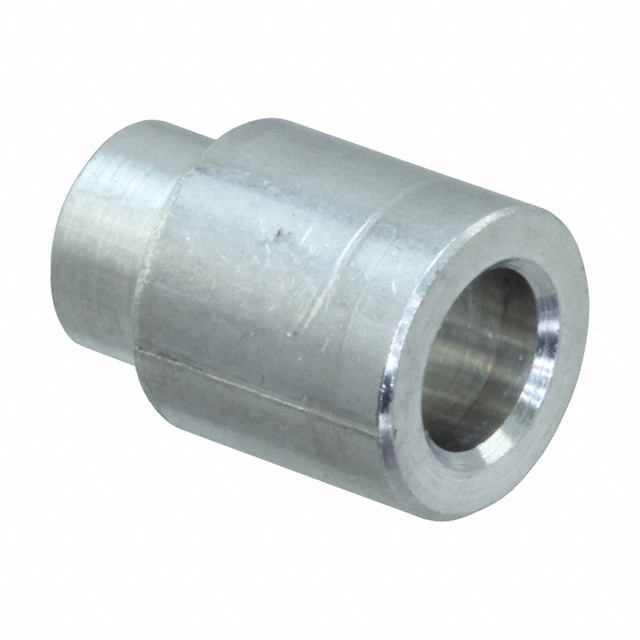

1533-B-6-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 1/4 X .140 ID
Deep-Dive with AI
Search across all available documentation for this part.
1533-B-6-AL-7
ActiveRAF Electronic Hardware
1/4 RD X 1/4 X .140 ID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1533-B-6-AL-7 |
|---|---|
| Between Board Height | 6.35 mm |
| Between Board Height | 0.25 in |
| Between Board Height | 0.25 in |
| Color | Clear |
| Diameter - Inside [diameter] | 0.14 in |
| Diameter - Inside [diameter] | 3.56 mm |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Swage, Female |
| Length - Overall [x] | 0.355 in |
| Length - Overall [x] | 9.02 mm |
| Material | Aluminum |
| Plating | Iridite |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 5 | $ 1.36 | |||
| 10 | $ 1.27 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.96 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.87 | |||
Description
General part information
1533-B Series
Round Spacer Unthreaded Aluminum 0.250" (6.35mm) 1/4" Clear
