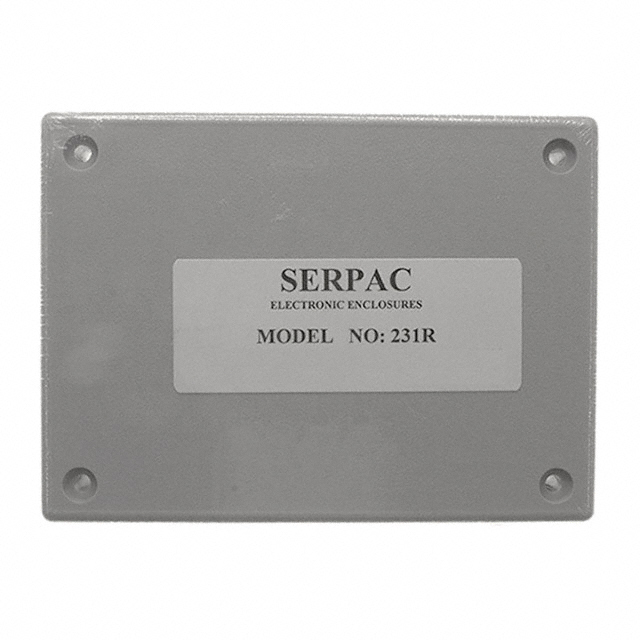

231R,GY

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	231R,GY

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Battery Compartment, Front Access, 9V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	95.25 g
Weight	0.21 lb

Part	Design	Thickness	Thickness	Color	Material Flammability Rating	Ratings	Area (L x W)	Area (L x W)	Container Type	Material	Height [z]	Height [z]	Features	Weight	Weight
Serpac 231R,BK	Hand Held Split Sides	2.54 mm	0.1 in	Black	UL94 HB	IP40 NEMA 1	92 cm˛	14.2 in²	Box	Plastic ABS	38.1 mm	1.5 in	9V Battery Compartment Front Access PCB Supports	95.25 g	0.21 lb
Serpac 231R,GY	Hand Held Split Sides	2.54 mm	0.1 in	Gray	UL94 HB	IP40 NEMA 1	92 cm˛	14.2 in²	Box	Plastic ABS	38.1 mm	1.5 in	9V Battery Compartment Front Access PCB Supports	95.25 g	0.21 lb
Serpac 231RI,BK	Hand Held Split Sides	2.54 mm	0.1 in	Black	UL94 HB	IP40 NEMA 1	92 cm˛	14.2 in²	Box	Plastic ABS	38.1 mm	1.5 in	9V Battery Compartment Front Access PCB Supports	95.25 g	0.21 lb
Serpac 231RI,GY	Hand Held Split Sides	2.54 mm	0.1 in	Gray	UL94 HB	IP40 NEMA 1	92 cm˛	14.2 in²	Box	Plastic ABS	38.1 mm	1.5 in	9V Battery Compartment Front Access PCB Supports	95.25 g	0.21 lb
Serpac 231RI,AL	Hand Held Split Sides	2.54 mm	0.1 in	Almond	UL94 HB	IP40 NEMA 1	92 cm˛	14.2 in²	Box	Plastic ABS	38.1 mm	1.5 in	9V Battery Compartment Front Access PCB Supports	95.25 g	0.21 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.00

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.500" (38.10mm)
