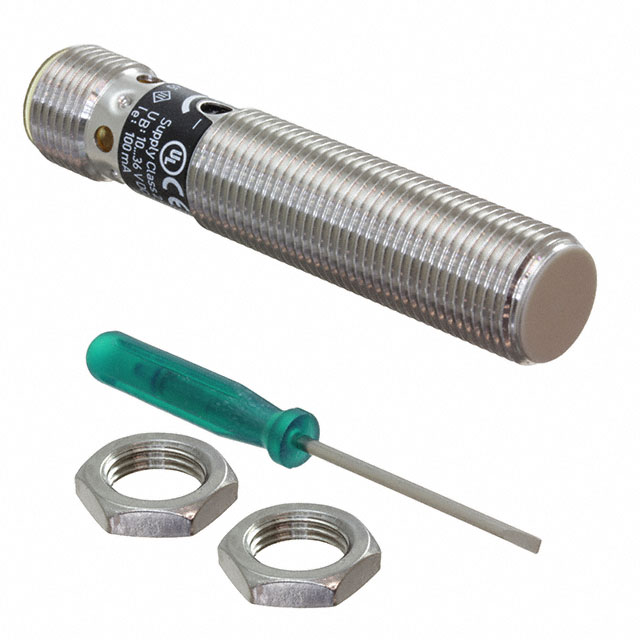

CBB4-12GH60-E2-V1
ActivePEPPERL+FUCHS
CAPACITIVE PROXIMITY SENSOR, ADJUSTABLE, 4 MM, PNP-NO, 10 TO 36 VDC
Deep-Dive with AI
Search across all available documentation for this part.
CBB4-12GH60-E2-V1
ActivePEPPERL+FUCHS
CAPACITIVE PROXIMITY SENSOR, ADJUSTABLE, 4 MM, PNP-NO, 10 TO 36 VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBB4-12GH60-E2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 4 mm |
| Sensing Distance | 0.157 in |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 36 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CBB4-12 Series
CAPACITIVE PROXIMITY SENSOR, ADJUSTABLE, 4 MM, PNP-NO, 10 TO 36 VDC
