2952855
ActivePhoenix Contact

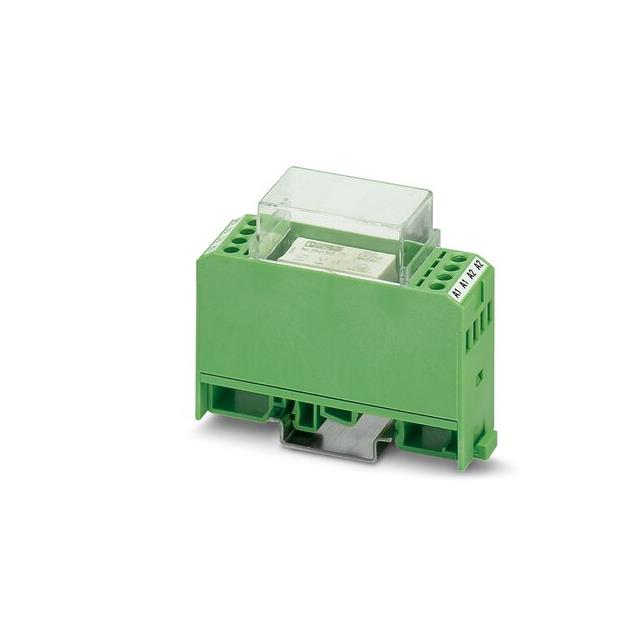

RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2952855
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2952855 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 5 mA |
| Coil Resistance | 46 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Varistor, Socket Included |
| Load - Max Switching | 1500 VA, 144 W |
| Mounting Type | DIN Rail |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.10 | |
Description
General part information
29528 Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
Documents
Technical documentation and resources
