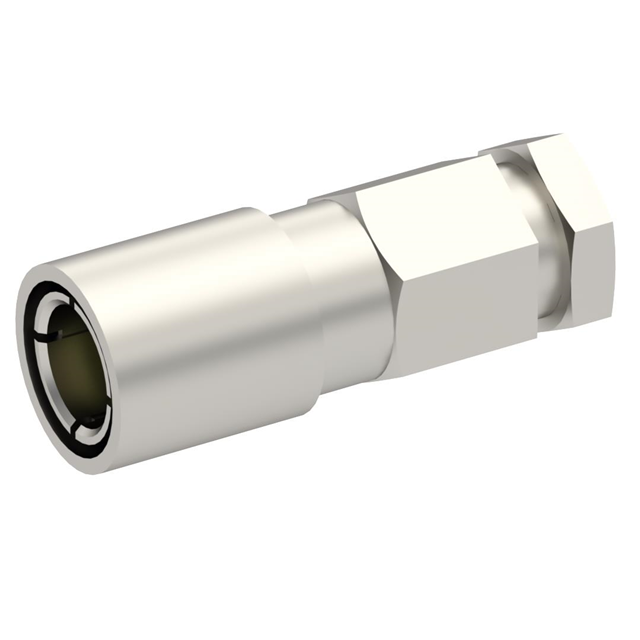

3002-7541-009

Active

Radiall USA, Inc.

SLB / STRAIGHT PLUG FEMALE SOLDE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB / STRAIGHT PLUG FEMALE SOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	3002-7541-009

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Frequency - Max [Max]	Body Material	Connector Style	Center Contact Material	Fastening Type	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Contact Termination	Housing Color	Shield Termination	Dielectric Material	Mating Cycles	Impedance	Insertion Loss	Body Finish	Number of Ports
Radiall USA, Inc. 3002-7541-009	4 GHz	Brass	SLB	Beryllium Copper	Snap-On	Free Hanging (In-Line)	Female Socket Plug	-65 ░C	165 °C	Gold	Solder	Silver	Clamp	Polytetrafluoroethylene (PTFE)	500	50 Ohms	0.3 dB	Nickel	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 27.33

General part information

SLB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
