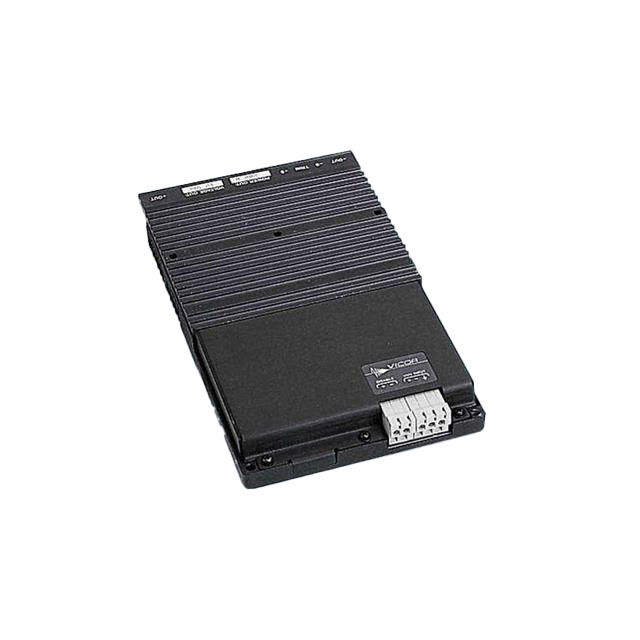

MI-LC21-MW

Active

Vicor Corporation

DC/DC CONVERTER 28V 12V 100W

Search across all available documentation for this part.

Active

Vicor Corporation

DC/DC CONVERTER 28V 12V 100W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Isolation	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs
Vicor Corporation MI-LC21-IY-H1	Enclosed	Chassis Mount	18 V	50 W	50 V	8.6 "	25.1 mm	2.5 in	0.99 "	218.4 mm	63.5 mm	12 V	4.167 A	4.242 kV	81 %	85 °C	-40 °C	ITE (Commercial)	1
Vicor Corporation MI-LC21-MW	Enclosed	Chassis Mount	18 V	100 W	50 V	8.6 "	25.1 mm	2.5 in	0.99 "	218.4 mm	63.5 mm	12 V	8.33 A	4.242 kV	81 %	85 °C	-55 °C	ITE (Commercial)	1
Vicor Corporation MI-LC21-IW-H1	Enclosed	Chassis Mount	18 V	100 W	50 V	8.6 "	25.1 mm	2.5 in	0.99 "	218.4 mm	63.5 mm	12 V	8.33 A	4.242 kV	81 %	85 °C	-40 °C	ITE (Commercial)	1
Vicor Corporation MI-LC21-IY	Enclosed	Chassis Mount	18 V	50 W	50 V	8.6 "	25.1 mm	2.5 in	0.99 "	218.4 mm	63.5 mm	12 V	4.167 A	4.242 kV	81 %	85 °C	-40 °C	ITE (Commercial)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1562.50

General part information

Enclosed DC DC Converter 1 Output 12V 8.33A 50V Input

Technical documentation and resources

No documents available
