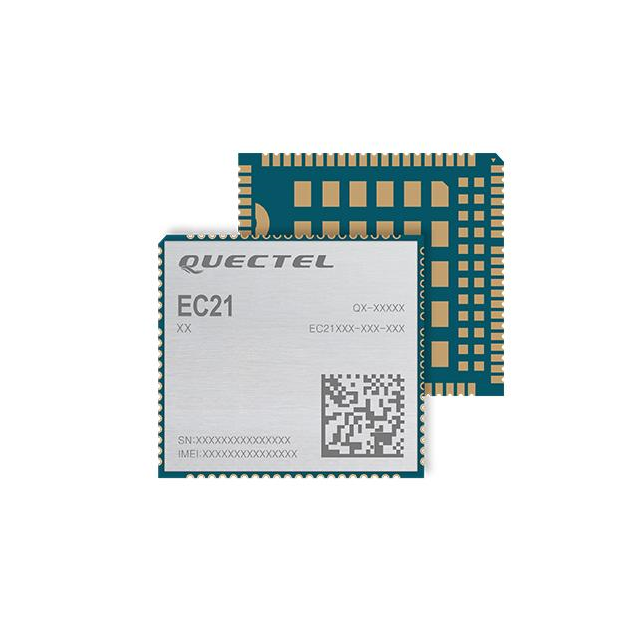

EC21AUXGA-128-SGNS
ObsoleteQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
EC21AUXGA-128-SGNS
ObsoleteQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC21AUXGA-128-SGNS |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 34 mA |
| Current - Transmitting | 34 mA |
| Data Rate | 10 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 33 dBm |
| Protocol | LTE, GSM, WCDMA |
| RF Family/Standard | Cellular |
| Sensitivity | -102 dBm |
| Serial Interfaces | UART, USB |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 3.3 V |
EC21 Series
| Part | Current - Receiving | Current - Transmitting | Package / Case | Protocol | Utilized IC / Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Data Rate | Serial Interfaces | Voltage - Supply [Max] | Voltage - Supply [Min] | Antenna Type | RF Family/Standard | Power - Output | Sensitivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Quectel | 32 mA | 32 mA | Module | Beidou Galileo GLONASS GNSS GPS LTE | MDM9307-0 | -35 °C | 75 ░C | Card Edge | 10 Mbps | I2C PCM UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular Navigation | ||
Quectel | 34 mA | 34 mA | Module | LTE WCDMA | MDM9207-1 | -40 °C | 80 C | Card Edge | 10 Mbps | UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm |
Quectel | 34 mA | 34 mA | Module | GSM LTE WCDMA | -40 °C | 85 °C | Surface Mount | 10 Mbps | UART USB | 4.3 V | 3.3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm | |
Quectel | 23 mA | 23 mA | Module | Beidou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA | MDM9207-1 | -35 °C | 75 ░C | Card Edge | 42 Mbps | I2C PCM UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular Navigation | ||
Quectel | 34 mA | 34 mA | Module | LTE WCDMA | MDM9207-1 | -40 °C | 80 C | Card Edge | 10 Mbps | UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm |
Quectel | 34 mA | 34 mA | Module | GSM LTE WCDMA | MDM9207-1 | -40 °C | 80 C | Card Edge | 10 Mbps | UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm |
Quectel | 32 mA | 32 mA | Module | Beidou Galileo GLONASS GNSS GPS LTE UMTS WCDMA | MDM9207-1 | -35 °C | 75 ░C | Card Edge | 42 Mbps | I2C PCM UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular Navigation | ||
Quectel | 34 mA | 34 mA | Module | GSM LTE WCDMA | MDM9207-1 | -40 °C | 80 C | Card Edge | 10 Mbps | UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm |
Quectel | 30 mA | 30 mA | Module | Beidou EDGE Galileo GLONASS GNSS GPS GSM LTE UMTS WCDMA | MDM9207-1 | -35 °C | 75 ░C | Card Edge | 42 Mbps | I2C PCM UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular Navigation | ||
Quectel | 34 mA | 34 mA | Module | GSM LTE WCDMA | -40 °C | 80 C | Card Edge | 10 Mbps | UART USB | 3.6 V | 3 V | Antenna Not Included | Cellular | 33 dBm | -102 dBm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 54.11 | |
| 10 | $ 50.46 | |||
| 25 | $ 46.80 | |||
| 100 | $ 43.88 | |||
Description
General part information
EC21 Series
Cellular GSM, LTE, WCDMA Transceiver Module Antenna Not Included Surface Mount
