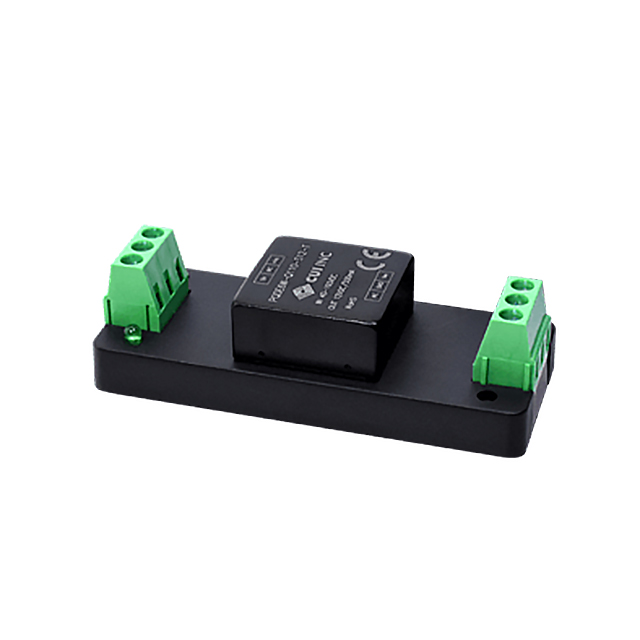

PQDE6W-Q110-S5-H-T

CUI Inc.

DC/DC CONVERTER 5V 6W

Deep-Dive with AI

Search across all available documentation for this part.

PQDE6W-Q110-S5-H-T

CUI Inc.

DC/DC CONVERTER 5V 6W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQDE6W-Q110-S5-H-T

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	1.2 A
Efficiency	80 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	6 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	1.24 in
Size / Dimension [y]	31.5 mm
Size / Dimension [z]	25.2 mm
Size / Dimension [z]	0.99 "
Standard Number	62368-1
Type	Enclosed
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	40 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

PQDE6W Series

Part	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Voltage - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Type	Current - Output (Max)	Current - Output (Max)	Standard Number	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Package / Case	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]
CUI Inc. PQDE6W-Q110-S24-D	6-DIP Module 4 Leads	40 V	6 W	85 °C	-40 °C	2250 VDC	160 V	1	ITE (Commercial)	24 V	86 %	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Through Hole	CE	250 mA	Isolated Module
CUI Inc. PQDE6W-Q48-D12-T		19 V	6 W	85 °C	-40 °C	1.5 kV	75 V	2	ITE (Commercial)	12 V	87 %	76 mm	21.2 mm			31.5 mm		Chassis Mount	EN		Enclosed	250 mA	250 mA	55024 55032	-12 V	2.99 in	0.84 "	1.24 in
CUI Inc. PQDE6W-Q24-S12-D	5-DIP Module	9 V	6 W	85 °C	-40 °C	1.5 kV	36 V	1	ITE (Commercial)	12 V	87 %	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Through Hole	CB Scheme EN IEC UL	500 mA	Isolated Module			55024 55032 Class A 60950-1					OCP OVP SCP UVLO	4 Lead
CUI Inc. PQDE6W-Q110-D12-D	6-DIP Module	40 V	6 W	85 °C	-40 °C	2250 VDC	160 V	2	ITE (Commercial)	12 V	84 %	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	Through Hole	CE		Isolated Module	250 mA	250 mA		-12 V
CUI Inc. PQDE6W-Q24-D15-DIN			6 W	85 °C	-40 °C	1.5 kV		2	ITE (Commercial)	15 V	88 %	76 mm	22.2 mm			31.5 mm			CE cURus						-15 V	2.99 in	0.87 in	1.24 in			DC	10 V	36 V
CUI Inc. PQDE6W-Q110-S5-H-T		40 V	6 W	85 °C	-40 °C	2250 VDC	160 V	1	ITE (Commercial)	5 V	80 %	76 mm	25.2 mm			31.5 mm		Chassis Mount	CE	1.2 A	Enclosed			62368-1		2.99 in	0.99 "	1.24 in
CUI Inc. PQDE6W-Q110-D12-DIN			6 W	85 °C	-40 °C	2250 VDC		2	ITE (Commercial)	12 V	84 %	76 mm	25.8 mm			31.5 mm			CE			250 mA	250 mA	62368-1	-12 V	2.99 in	1.02 in	1.24 in			DC	40 V	160 V
CUI Inc. PQDE6W-Q110-D15-T		40 V	6 W	85 °C	-40 °C	2250 VDC	160 V	2	ITE (Commercial)	15 V	85 %	76 mm	21.2 mm			31.5 mm		Chassis Mount	CE		Enclosed			62368-1	-15 V	2.99 in	0.84 "	1.24 in
CUI Inc. PQDE6W-Q110-S15-T		40 V	6 W	85 °C	-40 °C	2250 VDC	160 V	1	ITE (Commercial)	15 V	85 %	76 mm	21.2 mm			31.5 mm		Chassis Mount	CE	400 mA	Enclosed			62368-1		2.99 in	0.84 "	1.24 in
CUI Inc. PQDE6W-Q24-D12-T		10 VDC	6 W	85 °C	-40 °C	1.5 kV	36 V	2	ITE (Commercial)	12 V	87 %	76 mm	21.2 mm			31.5 mm		Chassis Mount	EN		Enclosed	250 mA	250 mA	55024 55032	-12 V	2.99 in	0.84 "	1.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 28.39
		5	$ 28.18
		24	$ 27.96

Description

General part information

PQDE6W Series

Enclosed DC DC Converter 1 Output 5V 1.2A 160V Input
