XS2R-D422-5

Active

Omron Electronics Inc-EMC Div

CONN T-ADPT 4P-4/4P M-F/F INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XS2R-D422-5

Active

Omron Electronics Inc-EMC Div

CONN T-ADPT 4P-4/4P M-F/F INLINE

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS2R-D422-5

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (2)
Current Rating (Amps)	3 A
Features	Coupling Nut
Housing Color	Gray
Housing Material	Polybutylene Terephthalate (PBT)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	125 VDC, 250 VAC

XS2R Series

Part	Shell Size - Insert (Convert To) [custom]	Housing Color	Connector Style	Convert From (Adapter End)	Shielding	Orientation (Convert To)	Number of Positions (Convert From)	Shell Size - Insert (Convert From)	Orientation (Convert From)	Voltage Rating	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Number of Positions (Convert To)	Convert To (Adapter End)	Ingress Protection	Housing Material	Features	1st Connector Orientation [custom]	2nd Connector Mounting Type	2nd Connector Gender	1st Connector Gender	2nd Connector Type	2nd Connector Type	1st Connector Type	Length [x]	Length [x]	1st Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	Cable Type	1st Connector Number of Positions Loaded	Color	Usage	1st Connector Number of Positions	1st Connector Mounting Type	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	Assembly Configuration
Omron Electronics Inc-EMC Div XS2R-D422-5	M12	Gray	Distributor T-Shaped	Male Pins	Unshielded	Keyed	4	M12	Keyed	125 VDC 250 VAC	Free Hanging (In-Line)	3 A	UL94 V-0	4	Female Sockets (2)	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Coupling Nut
Omron Electronics Inc-EMC Div XS2R-D426-C11-F					Unshielded											IP67 - Dust Tight Waterproof			Keyed	Free Hanging (In-Line)	Female Sockets	Male Pins	Plug	2	Receptacle	1 m	3.28 ft	M12	All	Round	All	Gray	Industrial Environments	4	Free Hanging (In-Line)	4	M12	Y-Adapter on One End
Omron Electronics Inc-EMC Div XS2R-D526-S001-5					Unshielded											IP67 - Dust Tight Waterproof			Keyed	Free Hanging (In-Line)	Female Sockets	Male Pins	Plug	2	Receptacle			M12	All	Round	All	Gray	Industrial Environments	4	Free Hanging (In-Line)	5	M12	Y-Adapter on One End

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.98
		10	$ 87.16
		25	$ 83.81
		50	$ 81.01
		100	$ 76.54

Description

General part information

XS2R Series

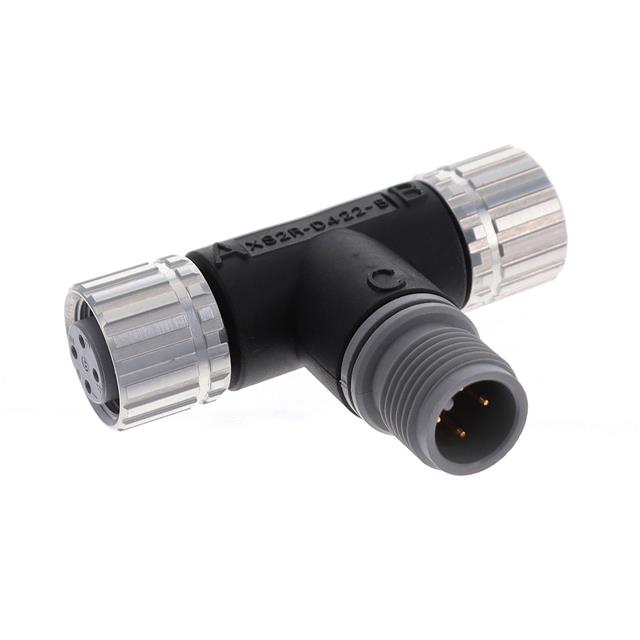

Circular Connector Distributor T-Shaped 4/4 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
