1072673
ActiveSICK, Inc.

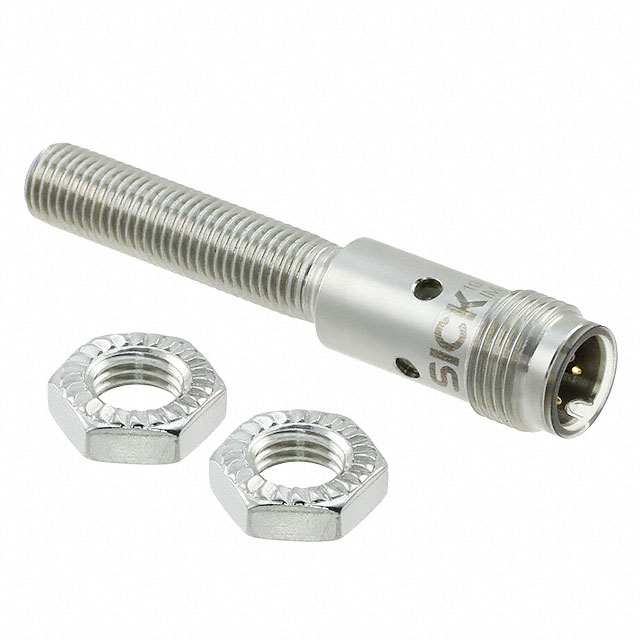

SENSOR PROX INDUCT 2MM IP69K CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1072673
ActiveSICK, Inc.
SENSOR PROX INDUCT 2MM IP69K CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1072673 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Response Frequency | 4 kHz |
| Sensing Distance | 0.079 in |
| Sensing Distance | 2 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
IMB08 Series
| Part | Ingress Protection | Voltage - Supply [Max] | Voltage - Supply [Min] | Response Frequency | Package / Case | Termination Style | Sensor Type | Sensing Distance | Sensing Distance | Output Type | Indicator [custom] | Material - Body | Operating Temperature [Min] | Operating Temperature [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Cable Leads | Inductive | 0.079 in | 2 mm | NO 2-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Connector | Inductive | 0.079 in | 2 mm | NPN-NC 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Connector | Inductive | 0.079 in | 2 mm | NPN-NC 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Cable Leads | Inductive | 0.157 in | 4 mm | NPN-NC 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Cable Leads | Inductive | 0.079 in | 2 mm | NPN-NO 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Connector | Inductive | 0.079 in | 2 mm | PNP-NO 3-Wire | LED | Stainless Steel | -40 °C | 100 °C | Unshielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Connector | Inductive | 0.079 in | 2 mm | NPN-NC/NO 4-Wire | LED | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Connector | Inductive | 0.157 in | 4 mm | NPN-NO 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP68 IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Cable Leads | Inductive | 0.079 in | 2 mm | PNP-NC 3-Wire | No Indicator | Plastic | -40 °C | 100 °C | Shielded |
SICK, Inc. | IP69K | 30 VDC | 10 VDC | 4 kHz | Cylinder Threaded - M8 | Cable Leads | Inductive | 0.079 in | 2 mm | PNP-NO 3-Wire | LED | Stainless Steel | -40 °C | 100 °C | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.54 | |
| 10 | $ 82.95 | |||
| 100 | $ 77.42 | |||
Description
General part information
IMB08 Series
SENSOR PROX INDUCT 2MM IP69K CYL
