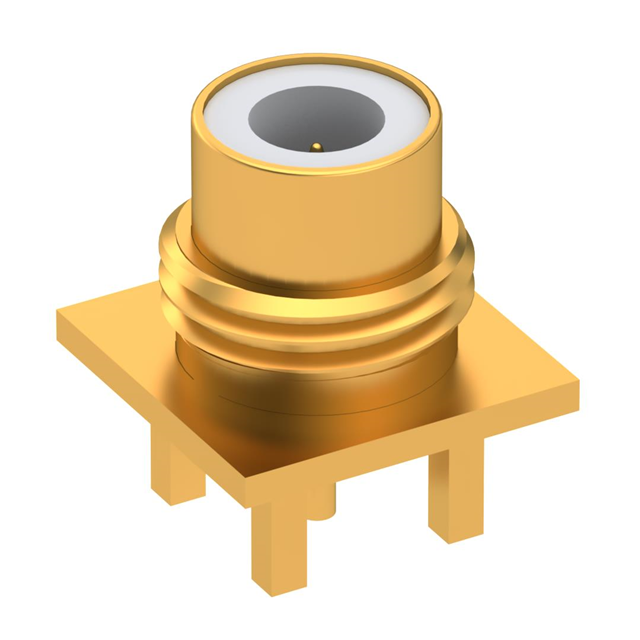

1709-1511-000
ActiveRadiall USA, Inc.
75OHM M STR BHD
Deep-Dive with AI
Search across all available documentation for this part.
1709-1511-000
ActiveRadiall USA, Inc.
75OHM M STR BHD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1709-1511-000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.05 | |
| 10 | $ 15.64 | |||
| 25 | $ 14.83 | |||
| 50 | $ 14.61 | |||
| 100 | $ 12.89 | |||
| 250 | $ 12.03 | |||
| 500 | $ 11.78 | |||
Description
General part information
1709-1511 Series
Connector Jack, Male Pin 75 Ohms Through Hole Solder
Documents
Technical documentation and resources
No documents available
