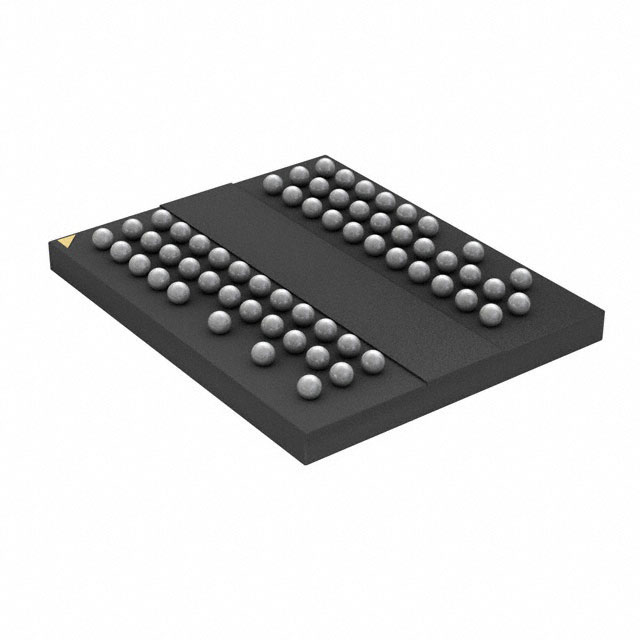

AS4C128M8D2A-25BCNTR

Active

Alliance Memory, Inc.

IC DRAM 1GBIT PARALLEL 60FBGA

Deep-Dive with AI

Search across all available documentation for this part.

AS4C128M8D2A-25BCNTR

Active

Alliance Memory, Inc.

IC DRAM 1GBIT PARALLEL 60FBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AS4C128M8D2A-25BCNTR

Access Time	400 ps
Clock Frequency	400 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	128 M
Memory Size	1 Mbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	60-TFBGA
Supplier Device Package	60-FBGA (8x10)
Technology	SDRAM - DDR2
Voltage - Supply [Max]	1.9 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	15 ns

AS4C128 Series

Part	Write Cycle Time - Word, Page	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Memory Interface	Clock Frequency	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Organization	Memory Size	Technology	Access Time	Package / Case	Mounting Type	Package / Case [custom]	Package / Case [custom]	Qualification	Grade
Alliance Memory, Inc. AS4C128M8D3B-12BIN	15 ns	95 °C	-40 °C	DRAM	78-FBGA	8	10.5	Parallel	800 MHz	Volatile	1.575 V	1.425 V	128 M	1 Mbit	SDRAM - DDR3	20 ns	78-VFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M16D2A-25BAN	15 ns	105 °C	-40 °C	DRAM	84-TFBGA (8x12.5)			SSTL_18	400 MHz	Volatile	1.9 V	1.7 V	128 M	2 Gbit	SDRAM - DDR2	400 ps	84-TFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M8D3LC-12BCN	15 ns	95 °C	0 °C	DRAM	78-FBGA (7.5x10.5)			Parallel	800 MHz	Volatile	1.45 V	1.283 V	128 M	1 Mbit	SDRAM - DDR3L	20 ns	78-VFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M8D2A-25BCNTR	15 ns	85 °C	0 °C	DRAM	60-FBGA (8x10)			Parallel	400 MHz	Volatile	1.9 V	1.7 V	128 M	1 Mbit	SDRAM - DDR2	400 ps	60-TFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M8D1-6TINTR	15 ns	85 °C	-40 °C	DRAM	66-TSOP II			Parallel	166 MHz	Volatile	2.7 V	2.3 V	128 M	1 Mbit		700 ps	66-TSSOP	Surface Mount	0.4 in	0.4 in
Alliance Memory, Inc. AS4C128M16D3L-12BIN	15 ns	95 °C	-40 °C	DRAM	96-FBGA			Parallel	800 MHz	Volatile	1.45 V	1.283 V	128 M	2 Gbit	SDRAM - DDR3L	20 ns	96-TFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M16MD2A-25BCNTR	15 ns	85 °C	-30 °C	DRAM	134-FBGA (10x11.5)			Parallel	400 MHz	Volatile	1.95 V	1.14 V	128 M	2 Gbit	SDRAM - Mobile LPDDR2		134-VFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M8D3A-12BIN	15 ns	95 °C	-40 °C	DRAM	78-FBGA	8	10.5	Parallel	800 MHz	Volatile	1.575 V	1.425 V	128 M	1 Mbit	SDRAM - DDR3	20 ns	78-VFBGA	Surface Mount
Alliance Memory, Inc. AS4C128M16D3LC-12BANTR	15 ns	105 °C	-40 °C	DRAM	96-FBGA (7.5x13)			Parallel	800 MHz	Volatile	1.45 V	1.283 V	128 M	2 Gbit	SDRAM - DDR3L	20 ns	96-VFBGA	Surface Mount			AEC-Q100	Automotive
Alliance Memory, Inc. AS4C128M8D3A-12BANTR	15 ns	105 °C	-40 °C	DRAM	78-FBGA	8	10.5	Parallel	800 MHz	Volatile	1.575 V	1.425 V	128 M	1 Mbit	SDRAM - DDR3	20 ns	78-VFBGA	Surface Mount			AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 4.40

Description

General part information

AS4C128 Series

SDRAM - DDR2 Memory IC 1Gbit Parallel 400 MHz 400 ps 60-FBGA (8x10)

Documents

Technical documentation and resources

No documents available
