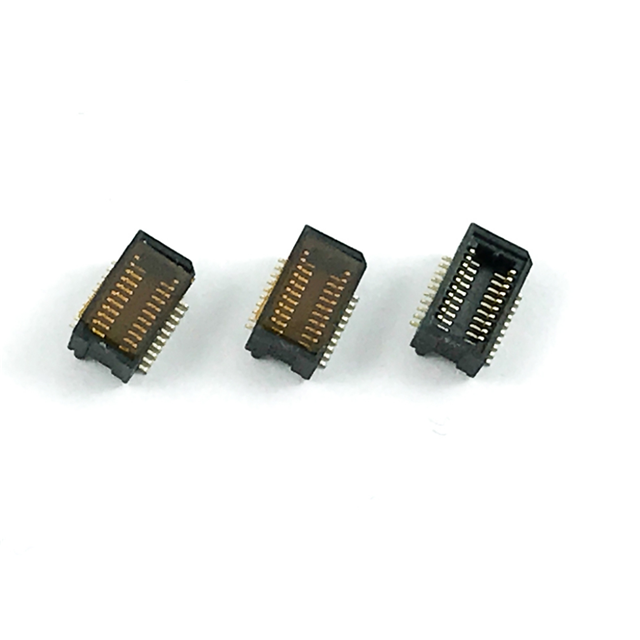

2332-30FG00DPT2-S

Active

Oupiin

BOARD TO BOARD, FEMALE CONNECCTO

Search across all available documentation for this part.

Active

Oupiin

BOARD TO BOARD, FEMALE CONNECCTO

Technical Specifications

Parameters and characteristics for this part

Specification	2332-30FG00DPT2-S

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Board Guide
Height Above Board	3.7 mm
Height Above Board	0.146 in
Mated Stacking Heights	3.5 mm, 4.5 mm, 4 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Features	Connector Type	Contact Finish Thickness	Height Above Board	Height Above Board
Oupiin 2332-30FG00DPT2-S	Gold	Surface Mount	30	0.5 mm	0.02 in	2	3.5 mm 4 mm 4.5 mm 5 mm	Board Guide	Receptacle Outer Shroud Contacts	Flash	3.7 mm	0.146 in
Oupiin 2332-30FG00DPT1-S	Gold	Surface Mount	30	0.5 mm	0.02 in	2	3.5 mm 4 mm 4.5 mm 5 mm	Board Guide	Receptacle Outer Shroud Contacts	Flash	2.75 mm	0.108 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
