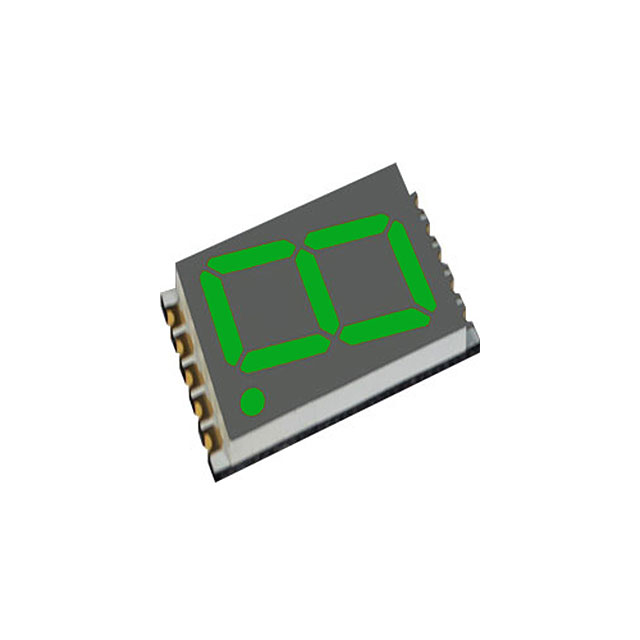

DSM7UA56105
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSM7UA56105
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM7UA56105 |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 425 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 120 mW |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [y] | 0.083 " |
| Size / Dimension [y] | 2.1 mm |
| Size / Dimension [z] | 0.787 in |
| Size / Dimension [z] | 20 mm |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 6.69 | |
| 10 | $ 4.86 | |||
| 100 | $ 4.01 | |||
| 500 | $ 3.51 | |||
| 1000 | $ 3.32 | |||
| 2000 | $ 3.25 | |||
Description
General part information
DSM7UA561 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.8V 20mA 0.787" H x 0.492" W x 0.083" D (20.00mm x 12.50mm x 2.10mm) 10-SMD, No Lead
Documents
Technical documentation and resources
No documents available
