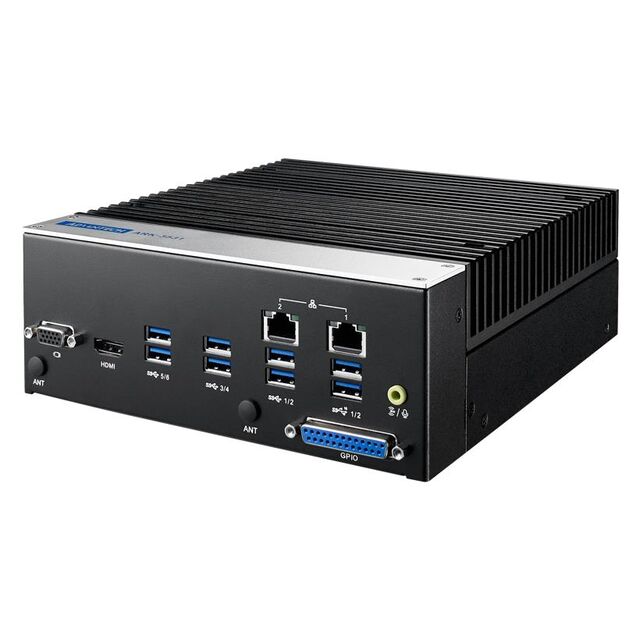

ARK-3531-00A1
ObsoleteAdvantech Corp
SBC 3.6GHZ 28 CORE 64GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
ARK-3531-00A1
ObsoleteAdvantech Corp
SBC 3.6GHZ 28 CORE 64GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARK-3531-00A1 |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel 9th GenCore i7, Intel 9th GenCore i3, Intel 9th GenCore i9, Intel 9th GenCore i5 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | M.2, mPCIe |
| Form Factor | AT/ATX |
| Number of Cores | 28 cores |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 150 W |
| RAM Capacity/Installed | 0 GB, 64 GB |
| RS-232 (422, 485) | 8 |
| Size / Dimension [x] | 214.88 mm |
| Size / Dimension [x] | 8.46 " |
| Size / Dimension [y] | 7.87 in |
| Size / Dimension [y] | 199.89 mm |
| Speed | 3.2 GHz, 2.2 GHz |
| Speed | 4.4 GHz, 2.1 GHz |
| Speed | 3.8 GHz, 1.8 GHz |
| Speed | 3.6 GHz, 2.2 GHz |
| Speed | 2.9 GHz |
| Storage Interface | mSATA, HDD |
| USB | USB 3.1 (2), USB 3.0 (6) |
| Video Outputs | VGA, HDMI |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARK-3531 Series
Single Board Computer 2.9GHz, 1.8GHz ~ 3.8GHz, 2.1GHz ~ 4.4GHz, 2.2GHz ~ 3.2GHz, 2.2GHz ~ 3.6GHz 28 Core 64GB/0GB RAM Intel 9th GenCore i9/i7/i5/i3
Documents
Technical documentation and resources
No documents available
