19360241542

Active

HARTING Technology Group

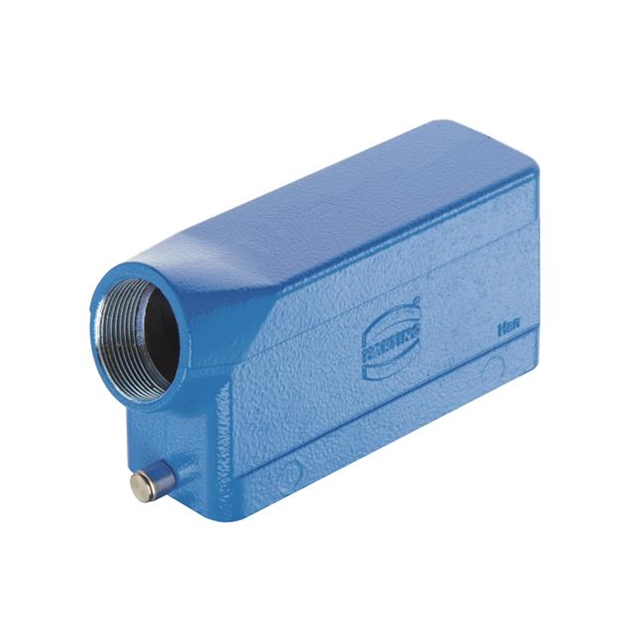

24B EX HOOD SIDE ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M32 (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Search across all available documentation for this part.

Active

HARTING Technology Group

24B EX HOOD SIDE ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M32 (IECEX INTRINSICALLY SAFE - IEC EN 60079)

Technical Specifications

Parameters and characteristics for this part

Specification	19360241542

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.461 in
Size / Dimension [z]	62.5 mm
Style	Side Entry
Thread Size	M32

Part	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Housing Material	Connector Type	Housing Finish	Lock Location	Size	Housing Color	Ingress Protection
HARTING Technology Group 19360241542	M32	-20 C	40 °C	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	Side Entry	Zinc Die Cast	Hood	Powder Coated	Locking Clip (1) on Base Bottom	24 B	Blue	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19360241521	M25	-20 C	40 °C							Side Entry	Zinc Die Cast	Hood	Powder Coated	Locking Clip (2) on Base Bottom	24 B	Blue	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19360241421	M25	-20 C	40 °C	120 mm	2.165 in	4.724 "	1.693 in	55 mm	43 mm	Top Entry	Zinc Die Cast	Hood	Powder Coated	Locking Clip (2) on Base Bottom	24 B	Blue	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19360241442	M32	-20 C	40 °C							Top Entry	Zinc Die Cast	Hood	Powder Coated	Locking Clip (1) on Base Bottom	24 B	Blue	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M32 24B IP65 - Dust Tight, Water Resistant
