E2024S.41.10

Unknown

Prysmian Group

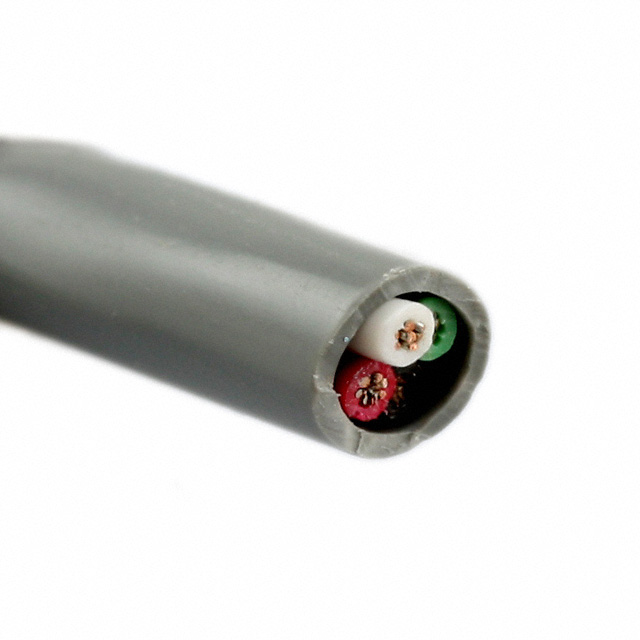

CABLE 4COND 20AWG GRAY SHLD 100'

Search across all available documentation for this part.

Unknown

Prysmian Group

CABLE 4COND 20AWG GRAY SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	E2024S.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.34 mm
Jacket (Insulation) Diameter [diameter]	0.171 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	30.5 m, 7.62 m
Length [x]	100 ft, 50 ft, 25 ft
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	20 AWG

Part	Length [x]	Length [x]	Wire Gauge	Number of Conductors	Shield Type	Shield Coverage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Conductor Material	Cable Type	Usage
Prysmian Group E2024S.41.10	7.62 m 30.5 m	25 ft 50 ft 100 ft	20 AWG	4	Foil	100 %	1000 ft	15.24 m 304.8 m	0.203 mm	0.008 in	Poly-Vinyl Chloride (PVC)	28	7	300 V	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.34 mm	0.171 in	Gray	Flexfoil®	Copper Bare	Multi-Conductor	Alarm Security Sound
Prysmian Group E2024S.30.10	30.5 m	100 ft	20 AWG	4	Foil	100 %	1000 ft	304.8 m	0.203 mm	0.008 in	Poly-Vinyl Chloride (PVC)	28	7	300 V	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.34 mm	0.171 in	Gray	Flexfoil®	Copper Bare	Multi-Conductor	Alarm Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.37

General part information

4 Conductor Multi-Conductor Cable Gray 20 AWG Foil 100.0' (30.5m)
