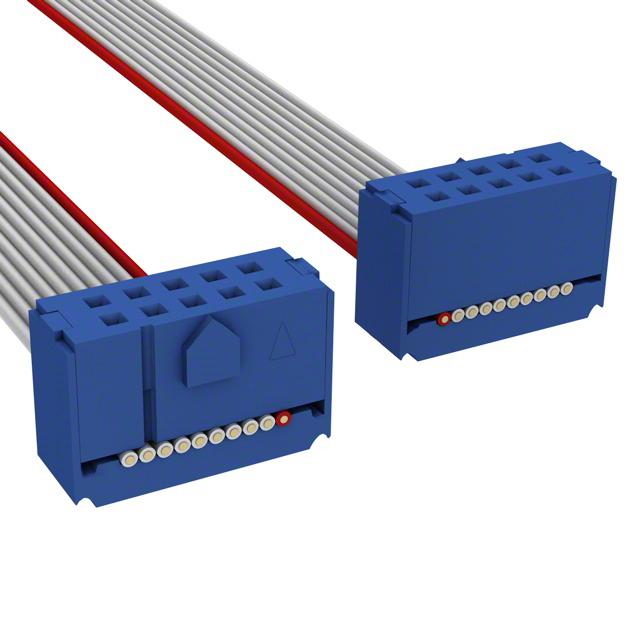

C3CCS-1018G

Active

CW Industries

IDC CABLE - CKC10S/AE10G/CKC10S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3CCS-1018G

Active

CW Industries

IDC CABLE - CKC10S/AE10G/CKC10S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3CCS-1018G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

C3CCS-1 Series

Part	Color	Contact Finish	Features	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Usage	Pitch - Cable	Pitch - Cable	Number of Positions	Shielding	Number of Rows	Connector Type	Number of Positions	Length	Length	Length
CW Industries C3CCS-1618M	Multiple Ribbon	Tin	Polarizing Key	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm	16	Unshielded	2	Socket to Socket
CW Industries C3CCS-1406G		Tin	Polarizing Key			0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	14	152.4 mm	6 "	0.5 '
CW Industries C3CCS-1018G		Tin	Polarizing Key	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	10
CW Industries C3CCS-1406M	Multiple Ribbon	Tin	Polarizing Key			0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	14	152.4 mm	6 "	0.5 '
CW Industries C3CCS-1036G		Tin	Polarizing Key	914.4 mm	3 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	10
CW Industries C3CCS-1036M	Multiple Ribbon	Tin	Polarizing Key	914.4 mm	3 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	10
CW Industries C3CCS-1006G		Tin	Polarizing Key			0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	10	152.4 mm	6 "	0.5 '
CW Industries C3CCS-1018M	Multiple Ribbon	Tin	Polarizing Key	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm		Unshielded	2	Socket to Socket	10
CW Industries C3CCS-1618G		Tin	Polarizing Key	457.2 mm	1.5 ft	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm	16	Unshielded	2	Socket to Socket
CW Industries C3CCS-1606G		Tin	Polarizing Key			0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Board In	0.05 "	1.27 mm	16	Unshielded	2	Socket to Socket		152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.15
		10	$ 6.24
		25	$ 5.64
		50	$ 5.22
		100	$ 4.85
		250	$ 4.41
		500	$ 4.11
		1000	$ 3.84
		2500	$ 3.55

Description

General part information

C3CCS-1 Series

10 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
