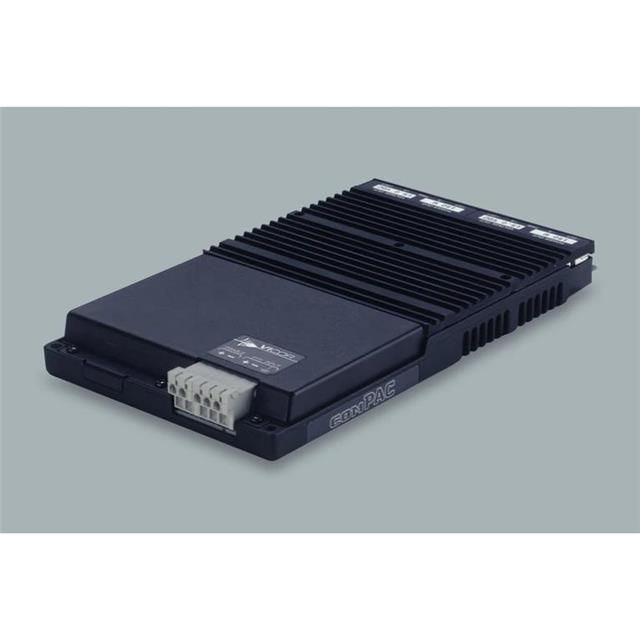

VI-RCW313-EWWW
ActiveVicor Corporation
DC/DC CONVERTER 2X24V 12V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VI-RCW313-EWWW
ActiveVicor Corporation
DC/DC CONVERTER 2X24V 12V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VI-RCW313-EWWW |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cTUVus, CE, cULus |
| Current - Output (Max) [Max] | 12.5 A, 6.25 A |
| Efficiency | 88 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 450 W |
| Size / Dimension [x] | 8.6 " |
| Size / Dimension [x] | 218.44 mm |
| Size / Dimension [y] | 185.42 mm |
| Size / Dimension [y] | 11.24 in |
| Size / Dimension [z] | 25.146 mm |
| Size / Dimension [z] | 0.99 " |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2577.91 | |
Description
General part information
VI-RCW313 Series
Enclosed DC DC Converter 3 Output 24V 15V 24V 6.25A, 12.5A, 6.25A 36V Input
