EDAC Inc.

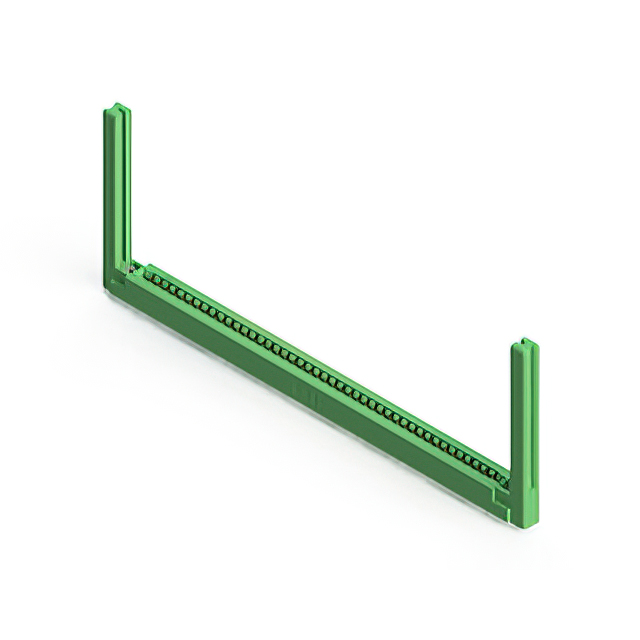

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-044-521-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-044-521-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	88
Number of Positions/Bay/Row [custom]	44
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

307-044 Series

...

Part	Number of Positions	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Mounting Type	Gender	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination Rows	Contact Material	Termination	Number of Rows	Contact Type	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-044-453-102	88	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole Right Angle	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Tin	1	Copper Alloy	Solder	2	Semi Bellows	Dual	Green
EDAC Inc. 307-044-558-203	44	Polyester Thermoplastic	2.95 mm	0.116 in	Floating Bobbin Flush Mount	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in		Through Hole Right Angle	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	2	Copper Alloy	Solder Wire Wrap	2	Semi Bellows	Dual	Green	10 Áin	0.25 Ám
EDAC Inc. 307-044-405-108	44	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole	Female	Non Specified - Single Edge	-40 °C	105 ░C	Tin	1	Copper Alloy	Solder Eyelet(s)	1	Semi Bellows	Single	Green
EDAC Inc. 307-044-445-168	44	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole	Female	Non Specified - Single Edge	-40 °C	105 ░C	Tin	1	Copper Alloy	Wire Wrap	1	Semi Bellows	Single	Green			Card Guides
EDAC Inc. 307-044-400-208	44	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	22	Through Hole	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Tin	2	Copper Alloy	Solder Eyelet(s)	2	Semi Bellows	Dual	Green
EDAC Inc. 307-044-558-168	44	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole Right Angle	Female	Non Specified - Single Edge	-40 °C	105 ░C	Gold	1	Copper Alloy	Solder	1	Semi Bellows	Single	Green	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-044-521-158	88	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	1	Copper Alloy	Solder	2	Semi Bellows	Dual	Green	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-044-421-101	88	Polyester Thermoplastic				0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	44	Through Hole	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Tin	1	Copper Alloy	Solder	2	Semi Bellows	Dual	Green
EDAC Inc. 307-044-524-258	44	Polyester Thermoplastic			4-40 Flush Mount Threaded Insert Top Opening	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	22	Through Hole	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	2	Copper Alloy	Solder	2	Semi Bellows	Dual	Green	10 Áin	0.25 Ám	Card Guides
EDAC Inc. 307-044-542-212	44	Polyester Thermoplastic	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	22	Through Hole	Female	Non Specified - Dual Edge	-40 °C	105 ░C	Gold	2	Copper Alloy	Wire Wrap	2	Semi Bellows	Dual	Green	10 Áin	0.25 Ám
