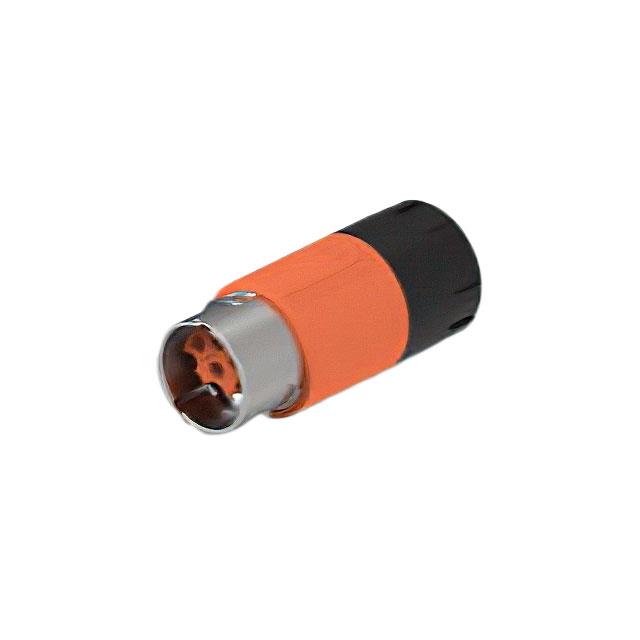

EKB201N00310500000
ActiveTE Intercontec
CONN RCPT HSG MALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EKB201N00310500000
ActiveTE Intercontec
CONN RCPT HSG MALE 9POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EKB201N00310500000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Orange |
| Includes | 1 Nut, 1 EMI Ring, 1 Contact Housing, 1 Clip, 1 Grommet, 1 Shell Housing, 1 Contact Block |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | PE |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 5 |
| Number of Positions [custom] | 9 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.55 | |
| 10 | $ 18.17 | |||
| 25 | $ 16.46 | |||
| 50 | $ 15.30 | |||
| 100 | $ 14.26 | |||
| 250 | $ 13.93 | |||
Description
General part information
EKB20 Series
9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
