357-009-441-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

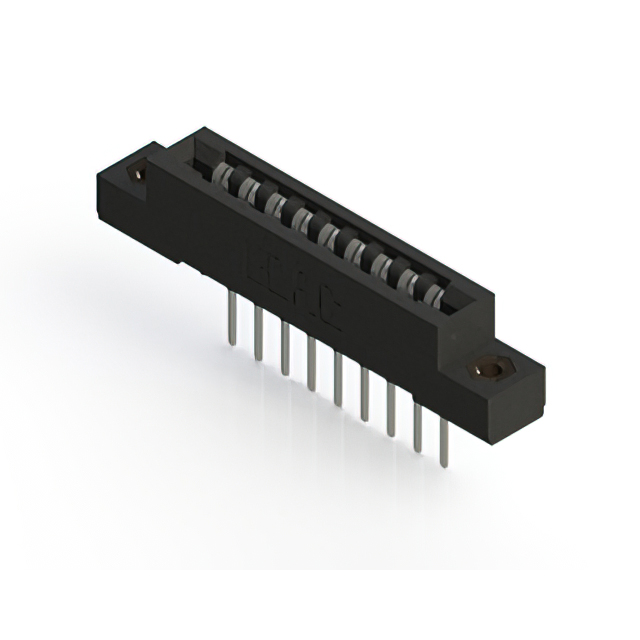

357-009-441-107

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-009-441-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions/Bay/Row [custom]	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows	1

357-009 Series

...

Part	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Read Out	Mounting Type	Contact Type	Termination Rows	Gender	Color	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Card Type	Number of Rows	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-009-558-158	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	9	Card Guides	Single	Through Hole Right Angle	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder	Copper Alloy	Non Specified - Single Edge	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm
EDAC Inc. 357-009-401-103	Floating Bobbin Flush Mount			18		Dual	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm	0.116 in	2.95 mm
EDAC Inc. 357-009-427-102	Flush Mount Top Opening Unthreaded			9		Single	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder	Copper Alloy	Non Specified - Single Edge	1	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm	0.128 "	3.25 mm
EDAC Inc. 357-009-441-104	Flush Mount Top Opening Unthreaded			18		Dual	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm	0.156 in	3.96 mm
EDAC Inc. 357-009-441-108	4-40 Flush Mount Threaded Insert Top Opening			18		Dual	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm
EDAC Inc. 357-009-541-178	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám	18	Card Guides	Dual	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	2	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm
EDAC Inc. 357-009-453-168	4-40 Flush Mount Threaded Insert Top Opening			18	Card Guides	Dual	Board Edge Straddle Mount	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder	Copper Alloy	Non Specified - Dual Edge	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm
EDAC Inc. 357-009-459-103	Floating Bobbin Flush Mount			9		Single	Through Hole Right Angle	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder	Copper Alloy	Non Specified - Single Edge	1	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm	0.116 in	2.95 mm
EDAC Inc. 357-009-441-107	Flush Mount M3 Threaded Insert Top Opening			18		Dual	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	2	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm
EDAC Inc. 357-009-405-158	4-40 Flush Mount Threaded Insert Top Opening			9	Card Guides	Single	Through Hole	Semi Bellows	1	Female	Black	Polyester Thermoplastic	-40 °C	105 ░C	Solder Eyelet(s)	Copper Alloy	Non Specified - Single Edge	1	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	9	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.92
Newark	Each	1	$ 18.49
		100	$ 11.28
		250	$ 10.23
		500	$ 9.58
		1000	$ 7.34

Description

General part information

357-009 Series

18 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
