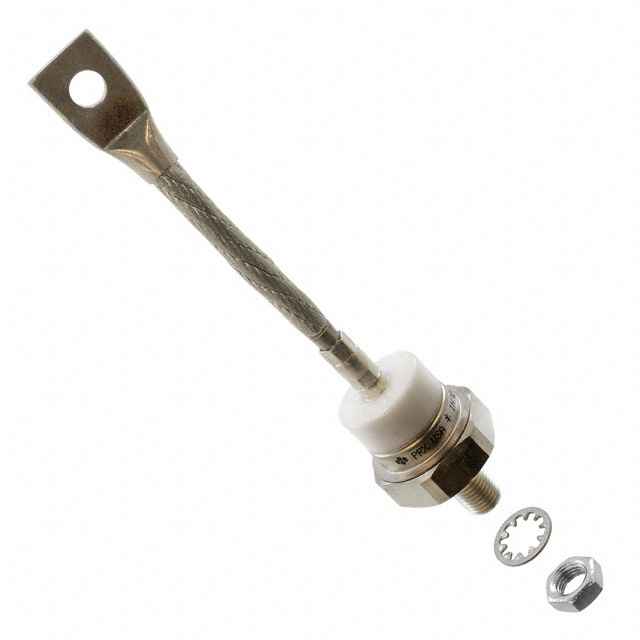

1N3288A

Unknown

Powerex Inc.

DIODE GEN PURP 100V 100A DO205AA

Search across all available documentation for this part.

Unknown

Powerex Inc.

DIODE GEN PURP 100V 100A DO205AA

Technical Specifications

Parameters and characteristics for this part

Specification	1N3288A

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	24 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-8
Supplier Device Package	DO-205AA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

Part	Technology	Mounting Type	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Speed	Speed
Powerex Inc. 1N3288AR	Reverse Polarity Standard	Chassis Stud Mount	100 A	100 V	DO-205AA DO-8 Stud	24 mA	200 C	-40 °C	DO-8	DO-205AA	1.5 V	Standard Recovery >500ns	200 mA
Powerex Inc. 1N3288A	Standard	Chassis Stud Mount	100 A	100 V	DO-205AA DO-8 Stud	24 mA	200 C	-40 °C	DO-8	DO-205AA	1.5 V	Standard Recovery >500ns	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 100A Chassis, Stud Mount DO-205AA (DO-8)
