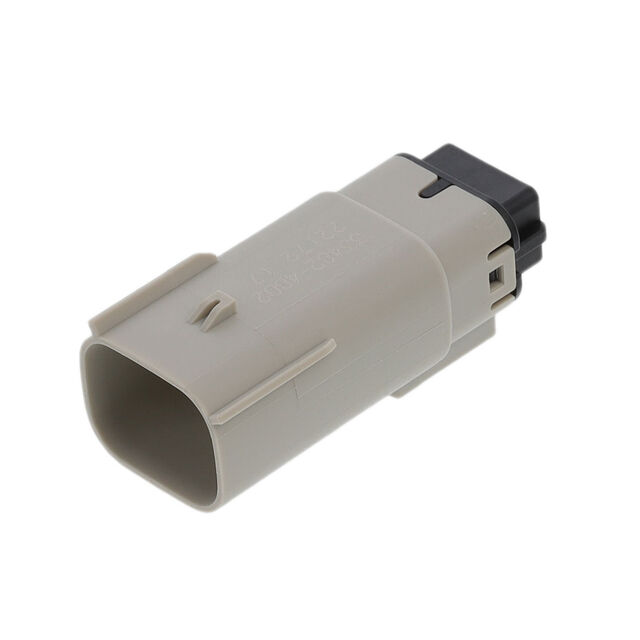

0334824802

Active

Molex

CONN PLUG HSG 8POS 3.50MM

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 8POS 3.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Contact Termination	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Features	Number of Rows	Color	Note	Number of Positions	Fastening Type	Insulation Material
Molex 0334820622	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Black	Contacts Not Included	6	Locking Ramp
Molex 0334821262	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Gray	Contacts Not Included	12	Locking Ramp
Molex 0334820401	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Black	Contacts Not Included	4	Locking Ramp
Molex 0334820629	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)		2	Gray	Contacts Not Included	6	Locking Ramp
Molex 0334824802	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Gray	Contacts Not Included	8	Locking Ramp
Molex 0334820617	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Black	Contacts Not Included	6	Locking Ramp
Molex 0334820621	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Black	Contacts Not Included	6	Locking Ramp
Molex 0334821201	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)	Sealed	2	Black	Contacts Not Included	12	Locking Ramp
Molex 0334823604	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)		2	Green	Contacts Not Included	6	Locking Ramp	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)
Molex 0334820651	Plug	Crimp	Male Blade	3.5 mm	0.138 in	Free Hanging (In-Line)		2	Black	Contacts Not Included	6	Locking Ramp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Gray 0.138" (3.50mm)
