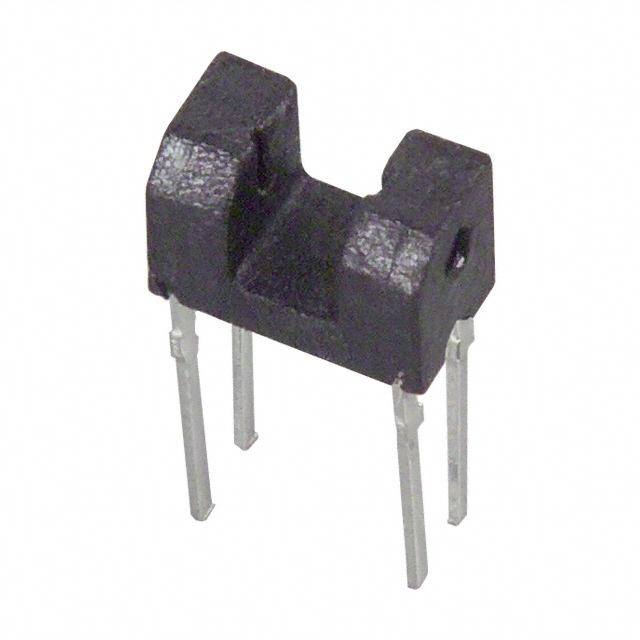

RPI-221

Active

Rohm Semiconductor

TRANSISTOR OUTPUT SLOTTED SWITCH, 1-CHANNEL, 2MM SLOT WIDTH, ULTRA SMALL PACKAGE-4

Search across all available documentation for this part.

Active

Rohm Semiconductor

TRANSISTOR OUTPUT SLOTTED SWITCH, 1-CHANNEL, 2MM SLOT WIDTH, ULTRA SMALL PACKAGE-4

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-221

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Response Time	10 µs
Sensing Distance	0.091 in
Sensing Distance	2.3 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Photointerrupter Double Mold Type

Part	Response Time	Type	Package / Case	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance	Sensing Distance	Mounting Type	Sensing Method	Output Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]
Rohm Semiconductor RPI-221	10 µs	Unamplified	PCB Mount	50 mA	30 mA	-25 °C	85 °C	0.091 in	2.3 mm	Through Hole	Through-Beam	Phototransistor	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's optical sensors serve as eyes to monitor changes of any motions, and comply with customer's day-to-day diversifying requests.
