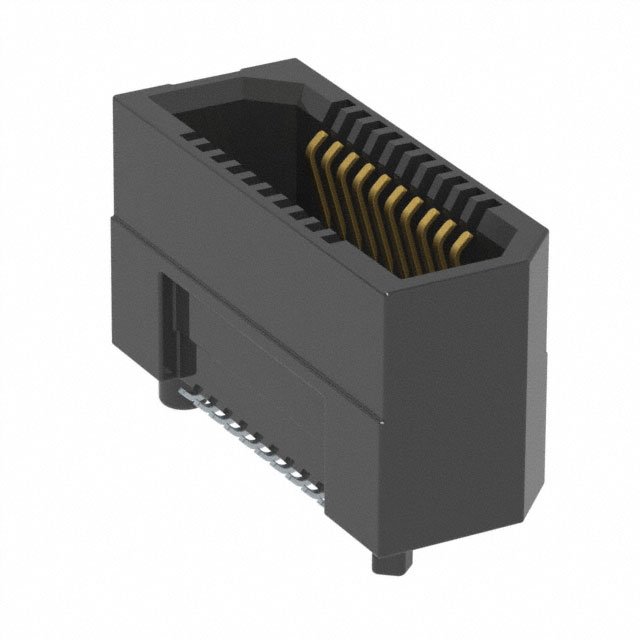

ER8-20S-0.8SV-7H
ActiveHirose Electric USA, Inc.
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ER8-20S-0.8SV-7H
ActiveHirose Electric USA, Inc.
CONN RCPT 20POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-20S-0.8SV-7H |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board [z] | 0.285 in |
| Height Above Board [z] | 7.24 mm |
| Mated Stacking Heights [z] | 12 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.08 | |
| 10 | $ 4.61 | |||
| 25 | $ 4.36 | |||
| 50 | $ 4.26 | |||
| 100 | $ 4.06 | |||
| Digi-Reel® | 1 | $ 5.08 | ||
| 10 | $ 4.61 | |||
| 25 | $ 4.36 | |||
| 50 | $ 4.26 | |||
| 100 | $ 4.06 | |||
| Tape & Reel (TR) | 375 | $ 3.03 | ||
| 750 | $ 2.83 | |||
| 1125 | $ 2.72 | |||
| 1875 | $ 2.59 | |||
| 2625 | $ 2.51 | |||
| 3750 | $ 2.46 | |||
Description
General part information
ER8-20S Series
20 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
