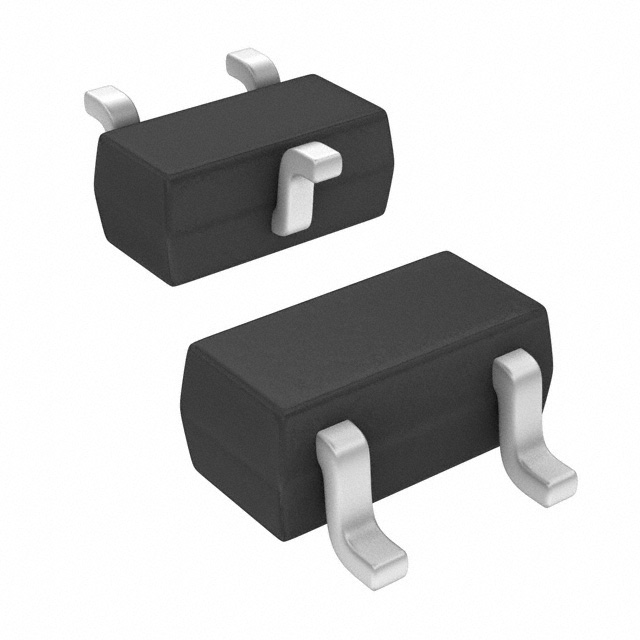

1SS423(TE85L,F)
ActiveToshiba Semiconductor and Storage
DIODE ARR SCHOTT 40V 100MA SSM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1SS423(TE85L,F)
ActiveToshiba Semiconductor and Storage
DIODE ARR SCHOTT 40V 100MA SSM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS423(TE85L,F) |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 100 mA |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Configuration | 1 Pair Series Connection |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 125 °C |
| Package / Case | SC-75, SOT-416 |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | SSM |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 620 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
Description
General part information
1SS423 Series
Diode Array 1 Pair Series Connection 40 V 100mA Surface Mount SC-75, SOT-416
