6050.5530
ActiveSCHURTER Inc.

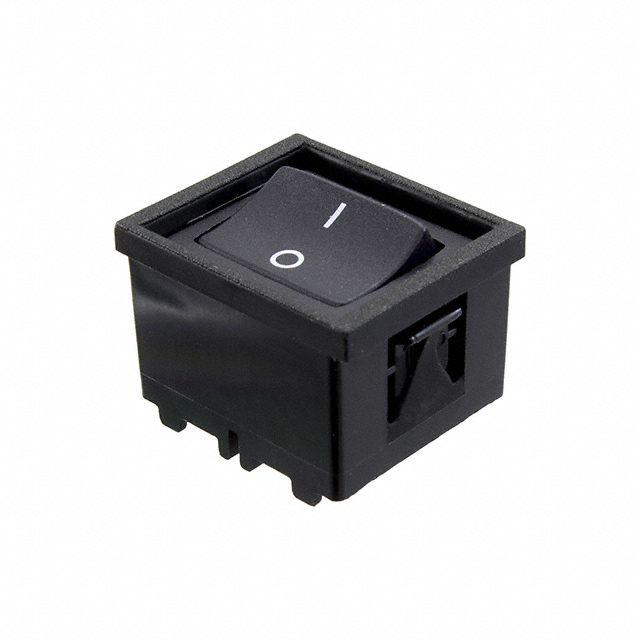

SWITCH ROCKER DPST 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6050.5530
ActiveSCHURTER Inc.
SWITCH ROCKER DPST 15A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6050.5530 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL, CSA, IEC |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 27.5 mm |
| Panel Cutout Dimensions [y] | 25.5 mm |
| Switch Function | On-Off |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.58 | |
| 50 | $ 9.86 | |||
| 100 | $ 8.91 | |||
Description
General part information
6050.5 Series
Rocker Switch DPST 15A (AC) 125 V Panel Mount, Snap-In
