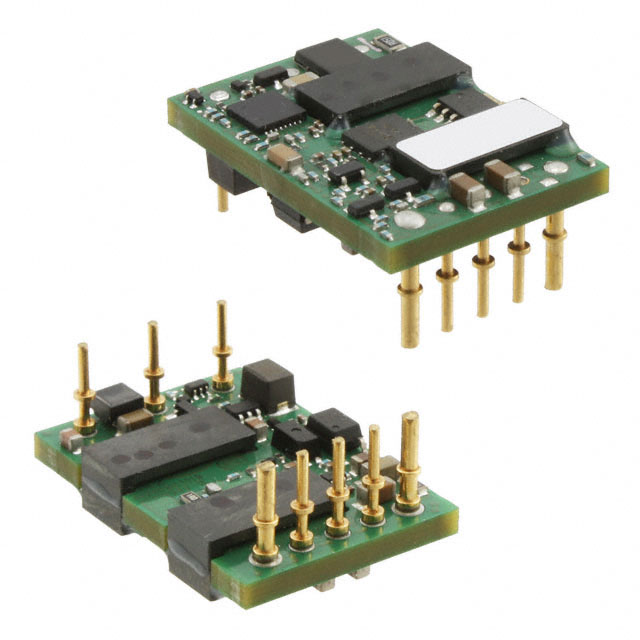

ALD18F48N-L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 60W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 60W

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - SMD 50W 3.3V@18A 36-75Vin NEG

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Current - Output (Max) [Max]	Package / Case	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Efficiency	Number of Outputs	Voltage - Input (Max) [Max]	Type	Power (Watts)	Voltage - Output 1	Voltage - Isolation
ARTESYN / Advanced Energy ALD18F48N-6L	ITE (Commercial)	85 °C	-40 °C	36 V	Through Hole	18 A	8-DIP Module	OCP OTP OVP Remote On/Off UVLO	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.9 mm	90 %	1	75 V	Non-Isolated PoL Module	60 W	3.3 V
ARTESYN / Advanced Energy ALD18F48N-L	ITE (Commercial)	85 °C	-40 °C	36 V	Through Hole	18 A	8-DIP Module	OCP OTP OVP Remote On/Off UVLO	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.9 mm	90 %	1	75 V	Non-Isolated PoL Module	60 W	3.3 V
ARTESYN / Advanced Energy ALD18F48N-SL	ITE (Commercial)	85 °C	-40 °C	36 V	Surface Mount	18 A	1/16 Brick 8-SMD Module	OCP OTP OVP Remote On/Off UVLO	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.8 mm	90 %	1	75 V	Isolated Module	60 W	3.3 V	1.5 kV
ARTESYN / Advanced Energy ALD18F48-SL	ITE (Commercial)	85 °C	-40 °C	36 V	Surface Mount	18 A	1/16 Brick 8-SMD Module	OCP OTP OVP Remote On/Off UVLO	22.9 mm	0.9 "	33 mm	1.3 "	0.35 "	8.8 mm	90 %	1	75 V	Isolated Module	60 W	3.3 V	1.5 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 46.58

General part information

Isolated DC/DC Converters - SMD 50W 3.3V@18A 36-75Vin NEG

Technical documentation and resources
