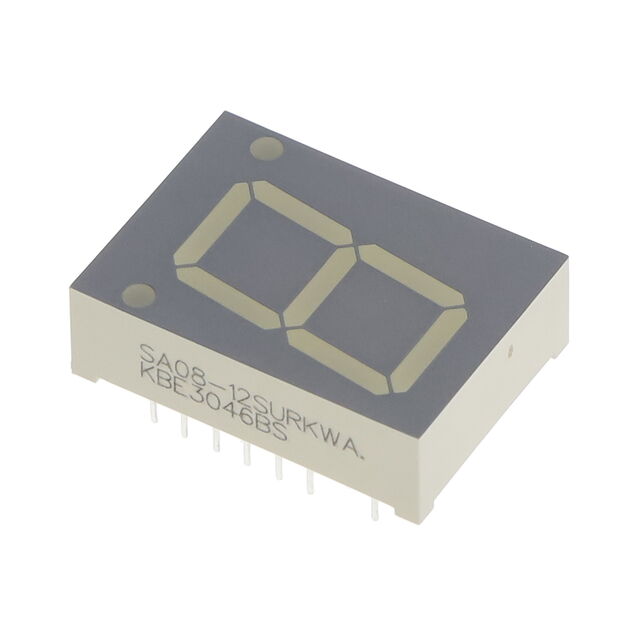

SA08-12SURKWA
ActiveKingbright
DISPLAY 7-SEG 0.8" SGL RED 16DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA08-12SURKWA
ActiveKingbright
DISPLAY 7-SEG 0.8" SGL RED 16DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA08-12SURKWA |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 7-Segment |
| Millicandela Rating | 61 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 16-DIP |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 1.091 in |
| Size / Dimension [x] | 27.7 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 8.4 mm |
| Size / Dimension [z] | 0.331 in |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 645 nm |
SA08-12 Series
| Part | Millicandela Rating | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] | Number of Characters [custom] | Color | Display Type | Package / Case | Package / Case | Package / Case | Current - Test | Common Pin | Wavelength - Peak | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | 61 mcd | 8.4 mm | 0.331 in | 1.091 in | 0.787 in | 27.7 mm | 20 mm | 1.95 V | 20.32 mm | 0.8 in | 75 mw | 1 | Red | 7-Segment | 0.6 in | 15.24 mm | 16-DIP | 20 mA | Common Anode | 645 nm | |
Kingbright | 13 mcd | 8.4 mm | 0.331 in | 1.091 in | 0.787 in | 27.7 mm | 20 mm | 2.2 V | 20.32 mm | 0.8 in | 62.5 mW | 1 | Green | 7-Segment | 0.6 in | 18-DIP | 20 mA | Common Anode | 565 nm | 15.24 mm | |
Kingbright | 7.9 mcd | 8.4 mm | 0.331 in | 1.091 in | 0.787 in | 27.7 mm | 20 mm | 2.1 V | 20.32 mm | 0.8 in | 75 mw | 1 | Yellow | 7-Segment | 0.6 in | 18-DIP | 20 mA | Common Anode | 590 nm | 15.24 mm | |
Kingbright | 36 mcd | 8.4 mm | 0.331 in | 1.091 in | 0.787 in | 27.7 mm | 20 mm | 1.85 V | 20.32 mm | 0.8 in | 75 mw | 1 | Red | 7-Segment | 0.6 in | 18-DIP | 20 mA | Common Anode | 660 nm | 15.24 mm | |
Kingbright | 25 mcd | 8.4 mm | 0.331 in | 1.091 in | 0.787 in | 27.7 mm | 20 mm | 2.1 V | 20.32 mm | 0.8 in | 75 mw | 1 | Green | 7-Segment | 0.6 in | 15.24 mm | 16-DIP | 20 mA | Common Anode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.02 | |
| 18 | $ 2.14 | |||
| 108 | $ 1.75 | |||
| 504 | $ 1.48 | |||
| 1008 | $ 1.35 | |||
| 2016 | $ 1.30 | |||
| 5004 | $ 1.27 | |||
Description
General part information
SA08-12 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm)
