ML30.106

Active

PULS, LP

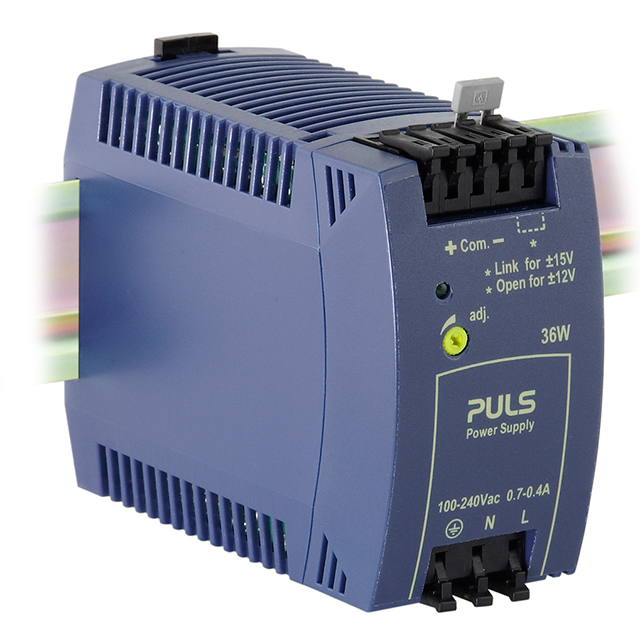

AC/DC DIN RAIL SUPPLY +/-12V 36W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY +/-12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	ML30.106

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	IEC, UL, NEC, EAC, ABS, DNV GL
Current - Output (Max)	1.4 A, 2.8 A
Efficiency	86 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	36 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	91 mm
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	2.95 "
Size / Dimension [z]	75 mm
Standard Number	61010.201, 60950.1, 508
Standard Number	Class 2
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Part	Current - Output (Max) [Max]	Efficiency	Number of Outputs	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Features	Voltage - Output 1	Input Type	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 2	Current - Output (Max)	Standard Number	Standard Number	Voltage - Isolation
PULS, LP ML30.101	5 A	80 %	1	30 W	ABS CSA DNV GL EAC IEC NEC UL	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	5 V	AC	70 °C	85 VAC	264 VAC
PULS, LP ML30.106		86 %	2	36 W	ABS DNV GL EAC IEC NEC UL	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	12 V	AC	70 °C	85 VAC	264 VAC	-12 V	1.4 A 2.8 A	508 60950.1 61010.201	Class 2
PULS, LP ML30.241	1.3 A	89.4 %	1	30 W	ABS CSA DNV GL EAC IEC NEC UL	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	24 V	AC	70 °C	85 VAC	264 VAC					500 V
PULS, LP ML30.102	3 A	84 %	1	30 W	CSA EAC IEC NEC UL	2.95 "	1.77 "	3.58 in	45 mm	91 mm	75 mm	ITE (Commercial)	Adjustable Output Load Sharing Universal Input	12 V	AC	70 °C	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 174.60

General part information

AC/DC DIN RAIL SUPPLY +/-12V 36W
