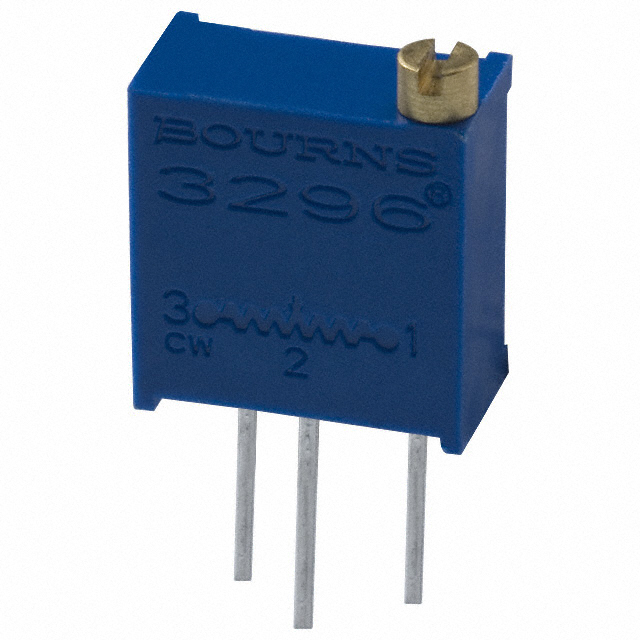

3296Y-1-473LF

Active

Bourns Inc.

TRIMMER 47K OHM 0.5W PC PIN TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3296Y-1-473LF

Active

Bourns Inc.

TRIMMER 47K OHM 0.5W PC PIN TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3296Y-1-473LF

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	25
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	47 kOhms
Resistive Material	Cermet
Size / Dimension [x]	9.53 mm
Size / Dimension [x]	0.375 in
Size / Dimension [y]	4.83 mm
Size / Dimension [y]	0.19 in
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3296Y Series

Part	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination Style	Power (Watts)	Power (Watts)	Temperature Coefficient	Tolerance	Number of Turns	Mounting Type	Resistive Material	Adjustment Type
Bourns Inc. 3296Y-1-222	2200 Ohms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-500	50 Ohms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-204LF	200000 Ohms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-200	20 Ohms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-503	50 kOhms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-473LF	47 kOhms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-302LF	3 kOhms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-252LF	2.5 kOhms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-252	2.5 kOhms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment
Bourns Inc. 3296Y-1-103LF	10000 Ohms	9.53 mm	0.375 in	4.83 mm	0.19 in	PC Pins	0.5 W	0.5 W	100 ppm/°C	10 %	25	Through Hole	Cermet	Top Adjustment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.71
		10	$ 1.50
		25	$ 1.35
		50	$ 1.30
		100	$ 1.24
		300	$ 1.19
		500	$ 0.98
		1000	$ 0.93
		5000	$ 0.91

Description

General part information

3296Y Series

47 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Top Adjustment

Documents

Technical documentation and resources
