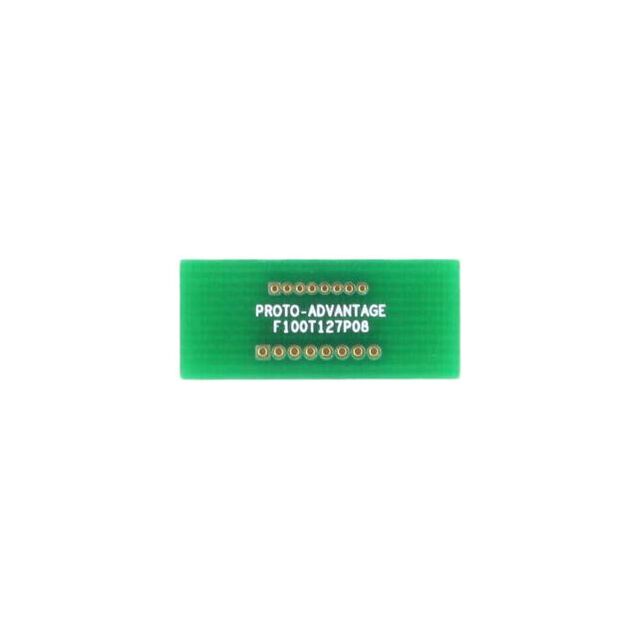

F100T127P08

Active

Chip Quik Inc.

PITCH CHANGER 1.00 MM TO 1.27 MM

Search across all available documentation for this part.

Active

Chip Quik Inc.

PITCH CHANGER 1.00 MM TO 1.27 MM

Technical Specifications

Parameters and characteristics for this part

Specification	F100T127P08

Board Thickness	1.6 mm
Board Thickness	0.063 in
Material	FR4 Epoxy Glass
Number of Positions	8
Pitch [x]	0.039 in
Pitch [x]	1 mm
Proto Board Type	Plated Through Hole to Plated Through Hole
Size / Dimension [x]	0.9 "
Size / Dimension [x]	22.86 mm
Size / Dimension [y]	10.16 mm
Size / Dimension [y]	0.4 in

Part	Material	Proto Board Type	Number of Positions	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Chip Quik Inc. F100T127P08	FR4 Epoxy Glass	Plated Through Hole to Plated Through Hole	8	0.039 in	1 mm	1.6 mm	0.063 in	0.9 "	22.86 mm	10.16 mm	0.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.69

General part information

PITCH CHANGER 1.00 MM TO 1.27 MM
