837-031-540-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 31POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-031-540-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 31POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-031-540-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
837-031 Series
...
| Part | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Pitch [x] | Pitch [x] | Contact Material | Gender | Read Out | Number of Positions/Bay/Row [custom] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Mounting Type | Termination | Termination Rows | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | ||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 0.116 in | 2.95 mm | ||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | ||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Solder | 1 | Cantilever | ||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole Right Angle | Solder | 1 | Cantilever | |||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole Right Angle | Solder | 1 | Cantilever | ||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Solder | 1 | Cantilever | ||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | |||||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 0.128 " | 3.25 mm | ||
EDAC Inc. | 31 | Green | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | 0.156 in | 3.96 mm | Copper Alloy | Female | Single | 31 | Non Specified - Single Edge | 125 °C | -40 °C | 1 | Through Hole | Wire Wrap | 1 | Cantilever | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-031 Series

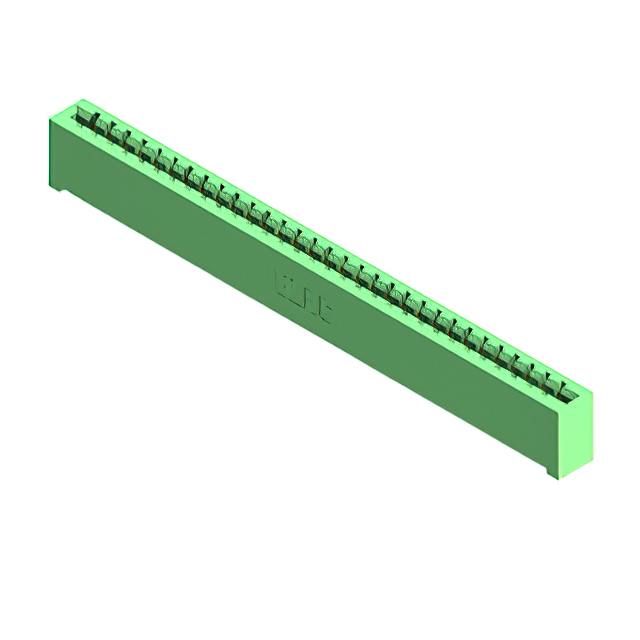

31 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
