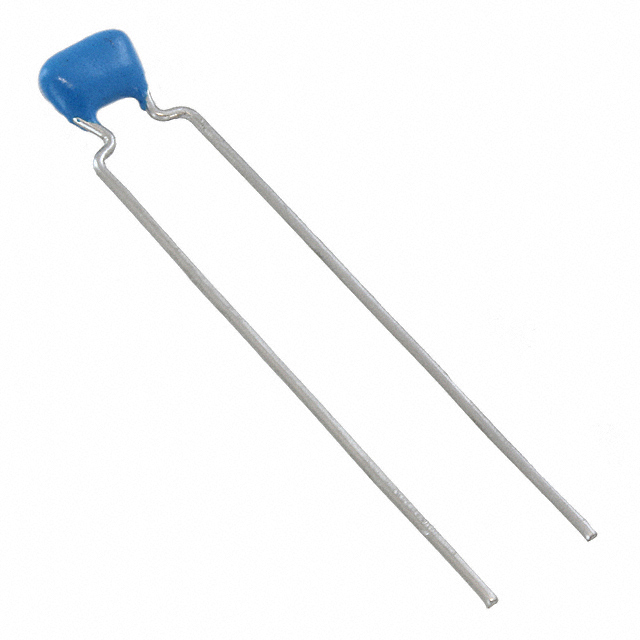

RCER72A154K2K1H03B

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 100V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCER72A154K2K1H03B

Active

Murata Power Solutions Inc.

CAP CER 0.15UF 100V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCER72A154K2K1H03B

Applications	Automotive
Capacitance	0.15 ÁF
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	5.5 mm
Size / Dimension [x]	0.217 "
Size / Dimension [y]	3.15 mm
Size / Dimension [y]	0.124 "
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	100 V

RCER72A Series

Part	Tolerance	Temperature Coefficient	Lead Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Capacitance	Applications	Package / Case	Ratings	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
Murata Power Solutions Inc. RCER72A223K0K1H03B	10 %	X7R	Formed Leads	0.098 in	0.142 in	3.6 mm	2.5 mm	3.5 mm	0.138 in	100 V	0.022 µF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	5 mm	0.197 in
Murata Power Solutions Inc. RCER72A154K2K1H03B	10 %	X7R	Formed Leads	0.124 "	0.217 "	5.5 mm				100 V	0.15 ÁF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	5 mm	0.197 in	0.157 in	4 mm	3.15 mm
Murata Power Solutions Inc. RCER72A333K1M1H03A	10 %	X7R	Formed Leads	0.098 in	0.157 "	4 mm	2.5 mm	3.5 mm	0.138 in	100 V	0.033 çF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	5 mm	0.197 in
Murata Power Solutions Inc. RCER72A683K1A2H03B	10 %	X7R	Straight	0.098 in	0.157 "	4 mm	2.5 mm	3.5 mm	0.138 in	100 V	0.068 µF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in
Murata Power Solutions Inc. RCER72A152K0A2H03B	10 %	X7R	Straight	0.098 in	0.142 in	3.6 mm	2.5 mm	3.5 mm	0.138 in	100 V	1500 pF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in
Murata Power Solutions Inc. RCER72A683K1DBH03A	10 %	X7R	Straight	0.098 in	0.157 "	4 mm	2.5 mm	3.5 mm	0.138 in	100 V	0.068 µF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in
Murata Power Solutions Inc. RCER72A105K2K1H03B	10 %	X7R	Formed Leads	0.124 "	0.217 "	5.5 mm				100 V	1 µF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	5 mm	0.197 in	0.157 in	4 mm	3.15 mm
Murata Power Solutions Inc. RCER72A682K0DBH03A	10 %	X7R	Straight	0.098 in	0.142 in	3.6 mm	2.5 mm	3.5 mm	0.138 in	100 V	6800 pF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in
Murata Power Solutions Inc. RCER72A221K0A2H03B	10 %	X7R	Straight	0.098 in	0.142 in	3.6 mm	2.5 mm	3.5 mm	0.138 in	100 V	220 pF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in
Murata Power Solutions Inc. RCER72A221K0DBH03A	10 %	X7R	Straight	0.098 in	0.142 in	3.6 mm	2.5 mm	3.5 mm	0.138 in	100 V	220 pF	Automotive	Radial	AEC-Q200	Through Hole	-55 °C	125 °C	2.5 mm	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1500	$ 0.20

Description

General part information

RCER72A Series

0.15 µF ±10% 100V Ceramic Capacitor X7R Radial
