Q-0301J0005108i

Active

Amphenol Custom Cable

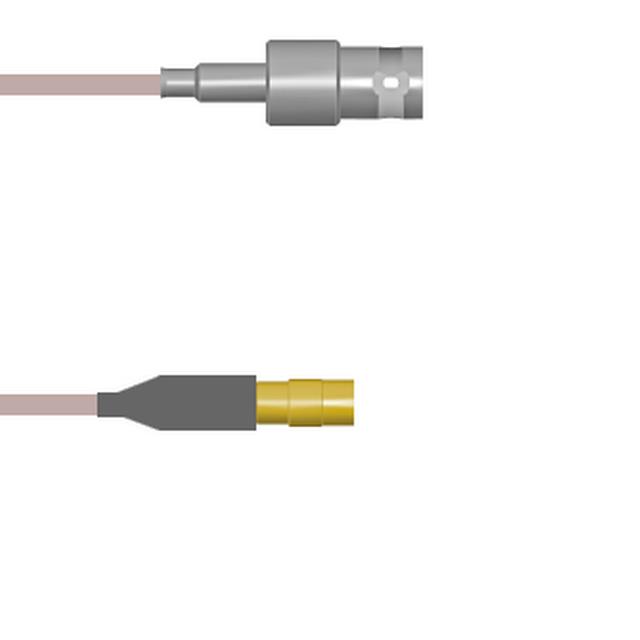

CBL ASSY BNC-MMCX JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0301J0005108i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0301J0005108i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0301J0 Series

Part	1st Contact Gender	Features	Cable Type	Overall Impedance	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Color	2nd Connector	2nd Contact Gender	Frequency - Max [Max]	Style	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0301J0003006i	Female	Shielded	RG-174	50 Ohms	152.4 mm	6 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack
Amphenol Custom Cable Q-0301J0005108i	Female	Shielded	RG-316	50 Ohms	2.7 m	108 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack	9 ft
Amphenol Custom Cable Q-0301J0005002M	Female	Shielded	RG-316	50 Ohms	2 m	78.7 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack	6.6 ft
Amphenol Custom Cable Q-0301J00051.5M	Female	Shielded	RG-316	50 Ohms	1.5 m	59.1 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack	4.9 ft
Amphenol Custom Cable Q-0301J0005024i	Female	Shielded	RG-316	50 Ohms	609.6 mm	24 "	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack
Amphenol Custom Cable Q-0301J0005006i	Female	Shielded	RG-316	50 Ohms	152.4 mm	6 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack
Amphenol Custom Cable Q-0301J0003002M	Female	Shielded	RG-174	50 Ohms	2 m	78.7 in	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack	6.6 ft
Amphenol Custom Cable Q-0301J0003.75M	Female	Shielded	RG-174	50 Ohms	750 mm	29.53 "	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack
Amphenol Custom Cable Q-0301J0005.25M	Female	Shielded	RG-316	50 Ohms			Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack		9.843 "	250 mm
Amphenol Custom Cable Q-0301J0003060i	Female	Shielded	RG-174	50 Ohms	1.5 m	5 '	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	MMCX Jack	Female	4 GHz	BNC to MMCX	BNC Jack	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.04
		25	$ 101.98
		50	$ 99.92
		100	$ 97.87
		250	$ 95.81

Description

General part information

Q-0301J0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
