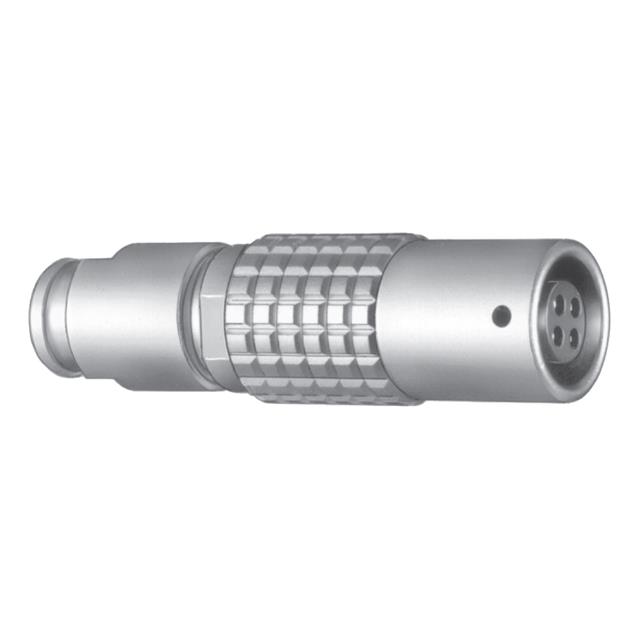

PHG.1B.512.CTLD42

Active

LEMO

CABLE MOUNT RECEPTACLE 2-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.1B.512.CTLD42

Active

LEMO

CABLE MOUNT RECEPTACLE 2-PAIR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHG.1B.512.CTLD42

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.1 mm, 4.2 mm
Cable Opening [diameter]	0.165 in, 0.122 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	7
Number of Positions [custom]	3
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	512
Shielding	Shielded

PHG.1B Series

Circular Push Pull Connectors BEND RELIEF

...

Part	Number of Positions	Connector Type	Mounting Type	Contact Material	Shell Finish	Shielding	Primary Material	Shell Material	Features	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Backshell Material, Plating	Current Rating (Amps)	Insert Material	Orientation	Fastening Type	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Feature	Contact Shape	Contact Size	Type	Note	Housing Color	Contact Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [diameter]
LEMO PHG.1B.307.CLLD72	7	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	307	-55 °C	250 °C	IP50	Brass Chrome	7 A	Polyetheretherketone (PEEK)	G	Push-Pull
LEMO PHG.1B.303.CYMD72Z		Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	303	-55 °C	250 °C	IP50	Brass Chrome	12 A	Polyetheretherketone (PEEK)	G	Push-Pull	Crimp
LEMO PHG.1B.304.CLLD52Z	4	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	304	-55 °C	250 °C	IP50	Brass Chrome	10 A	Polyetheretherketone (PEEK)	G	Push-Pull		0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PHG.1B.310.CLLD76	10	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	310	-55 °C	250 °C	IP50	Brass Chrome	2.5 A	Polyetheretherketone (PEEK)	G	Push-Pull					0.299 in	7.6 mm	0.283 in	7.2 mm
LEMO EEG.1B.304.CLV	4	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Bronze	Chrome	Shielded	Metal	Brass		UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	304	-55 °C	250 °C	IP50		6 A	Polyetheretherketone (PEEK)	G	Push-Pull	Solder								Bulkhead - Front Side Nut
LEMO PHG.1B.302.CYMD72	2	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	302	-55 °C	250 °C	IP50	Brass Chrome	15 A	Polyetheretherketone (PEEK)	G	Push-Pull	Crimp
LEMO PHG.1B.307.CLLD52	7	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	307	-55 °C	250 °C	IP50	Brass Chrome	7 A	Polyetheretherketone (PEEK)	G	Push-Pull		0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PHG.1B.308.CYZD76	8	Receptacle Housing	Free Hanging (In-Line)		Chrome	Shielded		Brass	Backshell								308	-55 °C	250 °C	IP50			Polyetheretherketone (PEEK)	G	Detent Lock Push-Pull										Circular	0.7 mm	For Female Sockets	Contacts Not Included	Silver	Crimp
LEMO PHG.1B.308.CLLM31	8	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	308	-55 °C	250 °C	IP50	Brass Chrome	5 A	Polyetheretherketone (PEEK)	G	Push-Pull																0.122 in	0.106 in	3.1 mm	2.7 mm
LEMO PHG.1B.512.CTLD42		Receptacle Female Sockets	Free Hanging (In-Line)		Chrome	Shielded	Metal	Brass	Backshell						Silver	Gold	512	-55 °C	250 °C	IP50	Brass Chrome		Polytetrafluoroethylene (PTFE)	G	Detent Lock Push-Pull			3.1 mm 4.2 mm																	4	7	3	0.122 in 0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.44
		10	$ 44.45
		25	$ 42.74
		50	$ 41.31
		100	$ 39.03
		250	$ 37.89

Description

General part information

PHG.1B Series

Circular Push Pull Connectors BEND RELIEF
