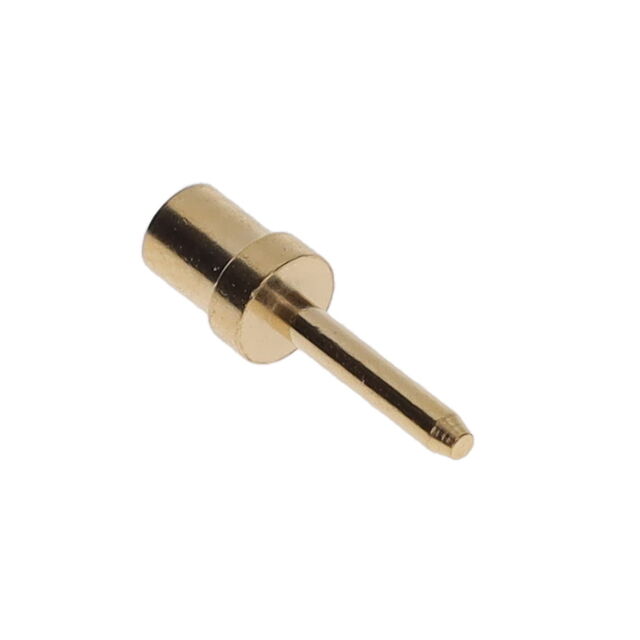

3230-2-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3230-2-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .040DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3230-2-00-21-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.77 mm |
| Flange Diameter [diameter] | 0.109 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 5.79 mm |
| Length - Above Flange | 0.228 " |
| Length - Below Flange [x] | 2.41 mm |
| Length - Below Flange [x] | 0.095 in |
| Length - Overall [x] | 0.363 in |
| Length - Overall [x] | 9.22 mm |
| Mounting Hole Diameter [diameter] | 2.39 mm |
| Mounting Hole Diameter [diameter] | 0.094 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
3230-2 Series
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Contact Material | Contact Finish | Board Thickness | Board Thickness | Termination | Length - Above Flange | Length - Above Flange | Mounting Type | Terminal Style | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 1.02 mm | 0.04 in | 2.41 mm | 0.095 in | 2.77 mm | 0.109 in | Non-Insulated | Brass Alloy | Gold | 0.062 in | 1.57 mm | Swage | 5.79 mm | 0.228 " | Through Hole | Single End | PC Pin | 0.51 µm | 20 µin | 2.39 mm | 0.094 " | 0.363 in | 9.22 mm | ||
Mill-Max Manufacturing Corp. | 1.02 mm | 0.04 in | 2.41 mm | 0.095 in | 2.77 mm | 0.109 in | Non-Insulated | Brass Alloy | Tin | 0.062 in | 1.57 mm | Swage | 5.79 mm | 0.228 " | Through Hole | Single End | PC Pin | 5.08 Ám | 200 Áin | 2.39 mm | 0.094 " | 0.363 in | 9.22 mm | 0.09 " | 2.29 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.79 | |||
| 3000 | $ 0.74 | |||
Description
General part information
3230-2 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
