TXR15AB00-1008AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ18 OLIV 1-20

Deep-Dive with AI

Search across all available documentation for this part.

TXR15AB00-1008AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ18 OLIV 1-20

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TXR15AB00-1008AI

Cable Exit	180 °
Color	Olive Drab
Diameter - Outside [diameter]	35 mm
Diameter - Outside [diameter]	1.378 in
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-5015 Connectors
Includes	1 Tinel Ring, 2 Screws, 1 Braid, 1 O-Ring, 1 Backshell
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	18
Shielding	Shielded
Thread Size	1-20 UNEF
Type	Backshell, Heat Shrink Adapter

TXR15AB00 Series

Part	Shell Size - Insert	Color	Type	Cable Exit	For Use With/Related Products	Includes	Features	Material	Plating	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thread Size	Shell Size - Insert
TE Connectivity Aerospace, Defense and Marine TXR15AB00-2022AI	32	Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	54.9 mm	2.161 in
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1008AI	18	Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	35 mm	1.378 in	1-20 UNEF
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0404AI		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	25 mm	0.984 "	5/8-24 UNEF	10SL 12 12S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0308AI		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Braid 1 Tinel Ring 2 O-Rings 2 Screws 8 pcs - 2 pc Backshell	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	21.5 mm	0.846 in	1/2-28 UNEF	10S 8S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1618AIH		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	45.2 mm	1.78 in	1 7/16-18 UNEF	24 28
TE Connectivity Aerospace, Defense and Marine TXR15AB00-1216AIH		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	39 mm	1.535 in	1 3/16-18 UNEF	20 22
TE Connectivity Aerospace, Defense and Marine TXR15AB00-2820AI	40	Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	68.6 mm	2.701 in	2 1/4-16 UN
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0307AI		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Braid 1 Tinel Ring 2 O-Rings 2 Screws 8 pcs - 2 pc Backshell	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	21.5 mm	0.846 in	1/2-28 UNEF	10S 8S
TE Connectivity Aerospace, Defense and Marine TXR15AB00-0605AI		Olive Drab	Backshell Heat Shrink Adapter	180 °	MIL-DTL-5015 Connectors	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	Tinel Lock	Aluminum Alloy	Cadmium	Shielded	28 mm	1.102 in	3/4-20 UNEF	14 14S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.90
		10	$ 50.40
		25	$ 45.81
		50	$ 43.10

Description

General part information

TXR15AB00 Series

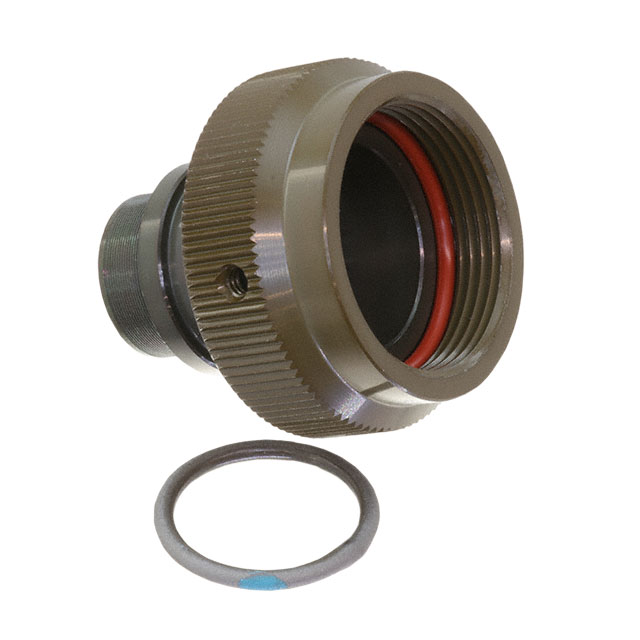

Olive Drab Connector Backshell, Heat Shrink Adapter 1-20 UNEF 18

Documents

Technical documentation and resources

No documents available
