PE40007

Active

Pasternack

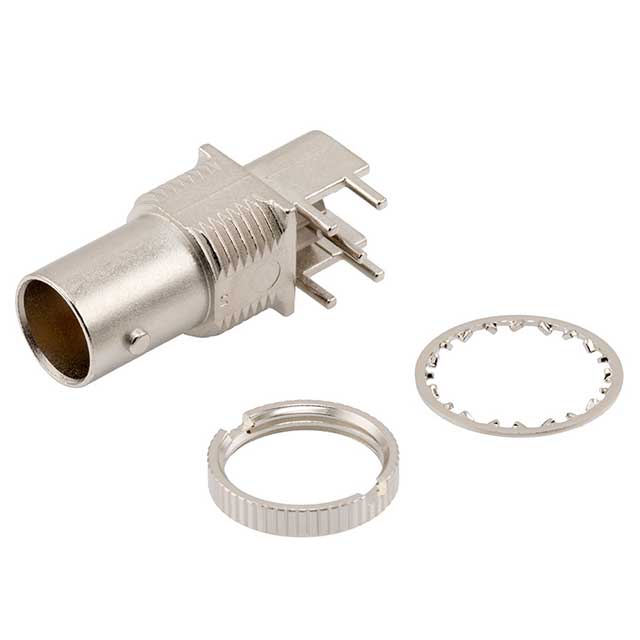

BNC(F) BLKHD MNT

Search across all available documentation for this part.

Active

Pasternack

BNC(F) BLKHD MNT

Technical Specifications

Parameters and characteristics for this part

Specification	PE40007

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polymethylpentene (PMP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	12 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Connector Type	Mounting Type	Shield Termination	Number of Ports	Center Contact Material	Mounting Feature	Housing Color	Frequency - Max [Max]	Fastening Type	Body Material	Body Finish	Center Contact Plating	Contact Termination	Connector Style	Impedance	Cable Group	Dielectric Material
Pasternack PE40009	Female Socket Jack	Panel Mount Through Hole	Solder	1	Brass	Bulkhead - Front Side Nut	Silver	12 GHz	Bayonet Lock	Zinc	Nickel	Gold	Solder	BNC	75 Ohms
Pasternack PE40001	Male Pin Plug	Free Hanging (In-Line)	Solder	1	Brass		Silver	12 GHz	Bayonet Lock	Brass	Nickel	Gold	Crimp	BNC	75 Ohms	4694R Belden 1694A RG-6	Polytetrafluoroethylene (PTFE)
Pasternack PE40007	Female Socket Jack	Panel Mount Right Angle Through Hole	Solder	1	Brass	Bulkhead - Front Side Nut	Silver	12 GHz	Bayonet Lock	Brass	Nickel	Gold	Solder	BNC	75 Ohms		Polymethylpentene (PMP)
Pasternack PE40005	Male Pin Plug	Free Hanging (In-Line)	Solder	1	Brass		Gold	12 GHz	Snap-On	Brass	Gold	Gold	Crimp	1.0/2.3	75 Ohms	4855R Belden 1855A	Polytetrafluoroethylene (PTFE)
Pasternack PE40004	Male Pin Plug	Free Hanging (In-Line)	Solder	1	Brass		Silver	12 GHz	Bayonet Lock	Brass	Nickel	Gold	Crimp	BNC HD	75 Ohms	4855R Belden 1855A	Polytetrafluoroethylene (PTFE)
Pasternack PE40003	Male Pin Plug	Free Hanging (In-Line)	Solder	1	Brass		Silver	12 GHz	Snap-On	Brass	Nickel	Gold	Crimp	1.0/2.3	75 Ohms	4694R Belden 1694A RG-6	Polytetrafluoroethylene (PTFE)
Pasternack PE40008	Female Socket Jack	Panel Mount Right Angle Through Hole	Solder	1	Brass	Bulkhead - Front Side Nut	Silver	12 GHz	Bayonet Lock	Zinc		Gold	Solder	BNC	75 Ohms		Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
