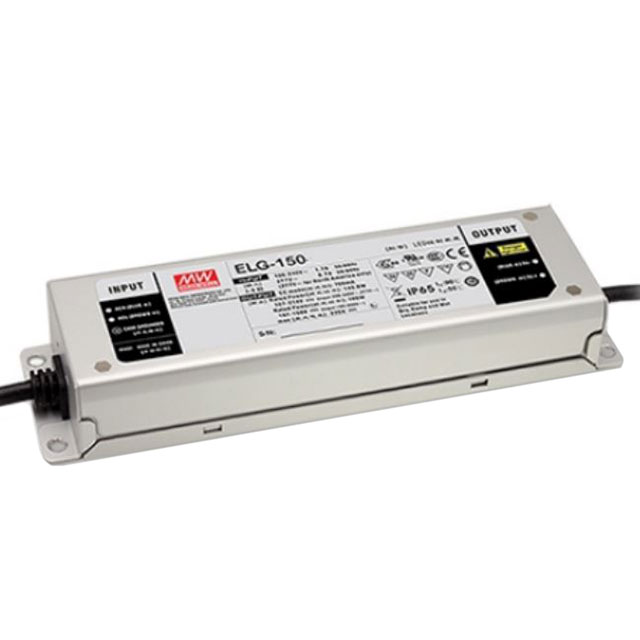

ELG-150-C1050B-3Y

Active

MEAN WELL USA Inc.

LED CC AC/DC DRIVER 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELG-150-C1050B-3Y

Active

MEAN WELL USA Inc.

LED CC AC/DC DRIVER 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELG-150-C1050B-3Y

Approval Agency	KC, ENEC, RCM, CE, CCC, CB, EAC, cURus
Current - Output (Max) [Max]	1.05 A
Efficiency	92 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	150 W
Ratings	IP67
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	35.5 mm
Size / Dimension [z]	1.4 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	143 V
Voltage - Output [Min]	72 V

ELG-150 Series

...

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Power (Watts)	Approval Agency	Ratings	Efficiency	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max]	Type	Voltage - Isolation	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Current - Output (Max)	Dimming	Voltage - Output
MEAN WELL USA Inc. ELG-150-36A	4.17 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	150 W	CB CCC CE cURus ENEC RCM	IP65	90 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads	36 V	18 V	1
MEAN WELL USA Inc. ELG-150-C1400DA	1.4 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC RCM	IP67	91 %	AC DC Converter			Chassis Mount	305 VAC	Constant Current	3750 V	Wire Leads	107 V	54 V	1
MEAN WELL USA Inc. ELG-150-54B		100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	151 W	CB CCC CE cURus ENEC RCM	IP67	91 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads	54 V	27 V	1	2.8 A	Analog PWM
MEAN WELL USA Inc. ELG-150-54AB		100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	151 W	CB CCC CE cURus EAC ENEC KC RCM	IP65	91 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads			1	2.8 A		54 V
MEAN WELL USA Inc. ELG-150-54		100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	151 W	CB CCC CE cURus ENEC RCM	IP67	91 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads	54 V	27 V	1	2.8 A
MEAN WELL USA Inc. ELG-150-24A-3Y	6.25 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC KC RCM	IP65	89 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads			1			24 V
MEAN WELL USA Inc. ELG-150-C1050A	1.05 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC RCM	IP65	92 %	AC DC Converter			Chassis Mount	305 VAC	Constant Current	3750 V	Wire Leads	143 V	72 V	1
MEAN WELL USA Inc. ELG-150-36D2-3Y	4.17 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OCP OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC KC RCM	IP67	90 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current Voltage	3750 V	Wire Leads			1			36 V
MEAN WELL USA Inc. ELG-150-C700D2	700 mA	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC RCM	IP67	92 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current	3750 V	Wire Leads			1
MEAN WELL USA Inc. ELG-150-C1050B-3Y	1.05 A	100 VAC	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	OTP OVP SCP	150 W	CB CCC CE cURus EAC ENEC KC RCM	IP67	92 %	AC DC Converter	90 °C	-40 °C	Chassis Mount	305 VAC	Constant Current	3750 V	Wire Leads	143 V	72 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.18
		5	$ 41.88
		10	$ 40.54
		25	$ 38.83

Description

General part information

ELG-150 Series

1.05A 72 ~ 143V Constant Current LED Driver AC DC Converter Topology 1 Output
