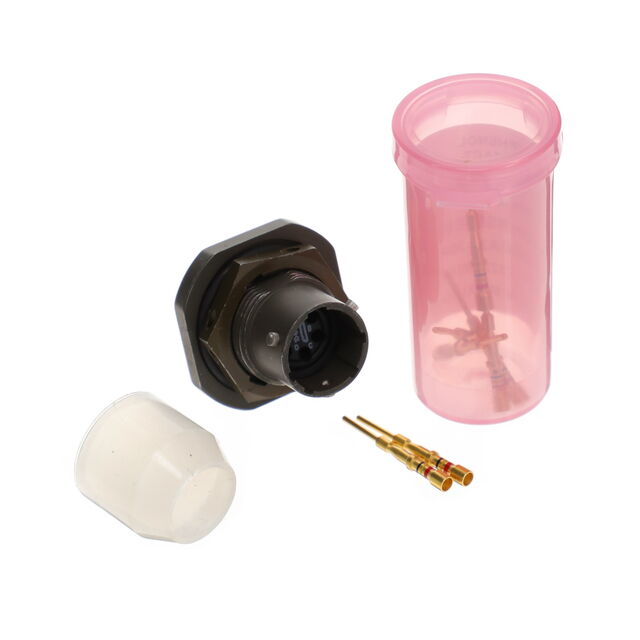

MS3124P10-6P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3124P10-6P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Potted
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	10-6
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Connector Type	Mounting Feature	Termination	Contact Material	Shell Material	Grade	Insert Material	Current Rating (Amps)	Ingress Protection	Fastening Type	Number of Positions	Applications	Orientation	Shell Finish	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Shell Size - Insert	Voltage Rating	Shielding	Primary Material	Contact Finish - Mating
Amphenol Industrial Operations MS3124P10-6S	Receptacle Female Sockets	Bulkhead - Front Side Nut	Crimp	Copper Alloy	Aluminum	Military	Neoprene	7.5 A	Environment Resistant	Bayonet Lock	6	Aerospace Industrial Instrumentation Mass Transit Military	N	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	-55 °C	125 °C	Potted	Olive Drab	10-6	600 VAC	Unshielded	Metal	Gold
Amphenol Industrial Operations MS3124P10-6P	Male Pins Receptacle	Bulkhead - Front Side Nut	Crimp	Copper Alloy	Aluminum	Military	Neoprene	7.5 A	Environment Resistant	Bayonet Lock	6	Aerospace Industrial Instrumentation Mass Transit Military	N	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	-55 °C	125 °C	Potted	Olive Drab	10-6	600 VAC	Unshielded	Metal	Gold
Amphenol Industrial Operations MS3124P10-6P(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Crimp
