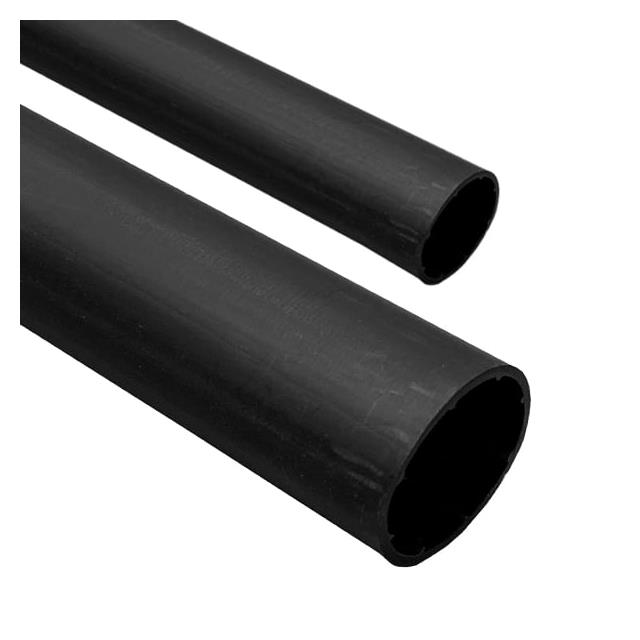

Q5-3XM-1-01-QB6IN-12

Active

Qualtek

HEATSHRINK 1"-6" BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1"-6" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-3XM-1-01-QB6IN-12

Color	Black
Features	Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	24.99 mm
Inner Diameter - Supplied [diameter]	0.984 in
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	3 mm
Recovered Wall Thickness	0.118 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Shelf Life	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Recovered Wall Thickness	Recovered Wall Thickness
Qualtek Q5-3XM-1-01-QB6IN-12	Polyolefin (PO)	-55 °C	125 °C	80 °C	Black	0.315 in	8 mm	-50 °F -10 °C	40 °C	Adhesive Lined Fluid Resistant	24.99 mm	0.984 in	152.4 mm	6 "	0.5 '	60 Months	1	3	Tubing Flexible	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.984" (24.99mm) 3 to 1 Black 0.500' (152.40mm, 6.00")
